BliKVM Plug-n-Play PCIe is a PCI Express card powered by Raspberry Pi CM4(CM4102000 included). It offers BIOS-level, secure and stable remote control of computer equipment. It is easy-to-use and the monitor webpage supports 1920×1080@60Hz video output. This is a low-cost, open-source "KVM-over-IP" solution.
  • BliKVM Plug-n-Play PCIe is a PCI Express card powered by Raspberry Pi CM4(CM4102000 included). It offers BIOS-level, secure and stable remote control of computer equipment. This is a low-cost, open-source "KVM-over-IP" solution that allows users to manage and control their systems from anywhere via an intuitive web-based interface.
  • The card is also equipped with an onboard ATX connector that allows for remotely switching the under-control machines on and off, resetting them, as well as monitoring power and storage LED activity. This hardware-level remote equipment control is user-friendly and can be run directly in all modern web browsers. Meanwhile, the webpage for monitoring computer equipment supports high-quality resolutions of 1920×1080@60Hz & 1920×1200@60Hz, and it also offers audio support.
  • This card allows for both PoE and USB power supply. It also contains other onboard modules like a fan and a real-time clock (RTC). An OLED display is onboard, equipped for showing the temperature, IP address, and other information of the Raspberry Pi CM4, designed for users' convenience.

What is the difference between IP KVM and remote control management software?

  • Remote control management software is dependent on the operating system, if the operating system or application software in the execution of problems, then can not be carried out remote management.

  • IP KVM products are hardware-based rather than software-independent, so they can support any server regardless of its manufacturer or the version of the operating system it is running.


Features:

  • Plug-n-play PCIe Card for KVM-over-IP Solution: Powered by Raspberry Pi CM4(CM4102000 included), designed for BIOS-level, secure and stable remote control of computer equipment
  • ATX Control: Enable remotely switching the machine on and off, or resetting, as well as monitoring power & storage LED activity
  • User-friendly and Flexible: Run directly in all modern web browsers and allow both PoE and USB power supply
  • High-quality Video of Webpage Imagery Output: Support high-quality resolutions of 1920×1080@60Hz & 1920×1200@60Hz, and also offer audio support

  • Onboard OLED Display: Show the temperature, IP address and other information of the Raspberry Pi CM4 for users' convenience

Specifications:

Title Description
HDMI IN HDMI Input
POWER-IN Power Input
ATX-CONNECTER ATX Connector
FAN Fan
REAL TIME CLOCK(RTC) Real Time Clock(RTC)
USB-PC USB-PC
ETHERNET-PoE Ethernet-PoE
OLED DISPLAY OLED Display
BOOT Boot
UART UART

Hardware Overview:


Note

You may need other items to make it function:

  • 1 x PoE-sourcing equipment or 5V/3A USB adapter
  • 1 x CR1220 coin cell battery

Applications:

  • Remote server management
  • Home office setup
  • Digital signage

  • Industrial control systems

ECCN/HTS

  • HSCODE 8471800000
  • USHSCODE 8471705095
  • UPC
  • EUHSCODE 8471707000

  • COO CHINA

Documentation:

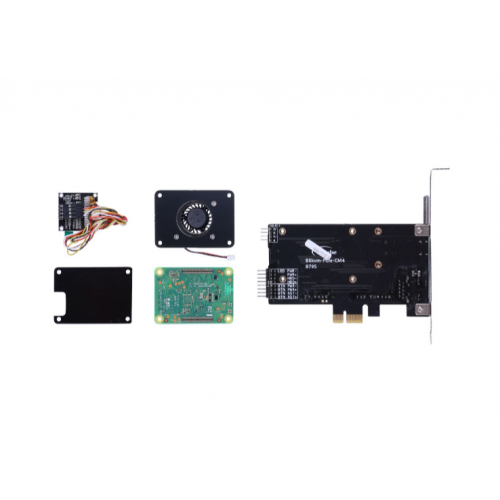

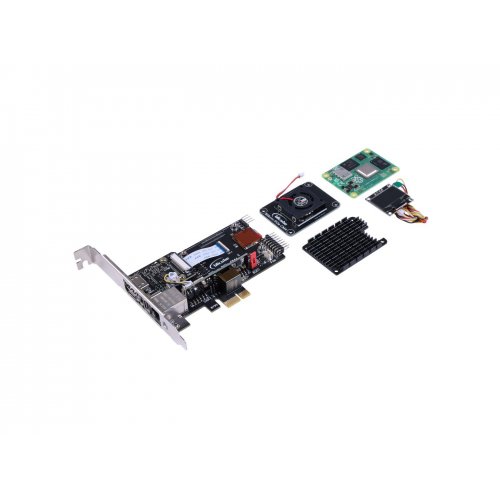

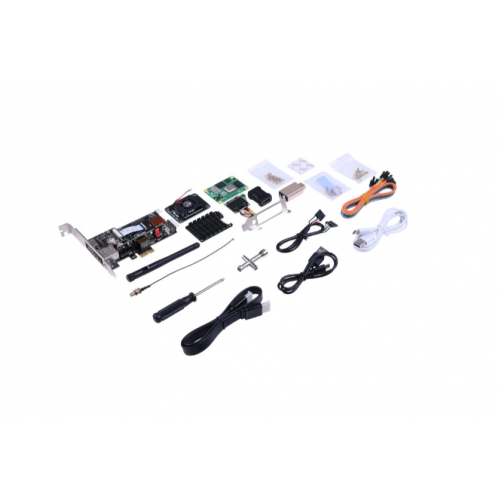

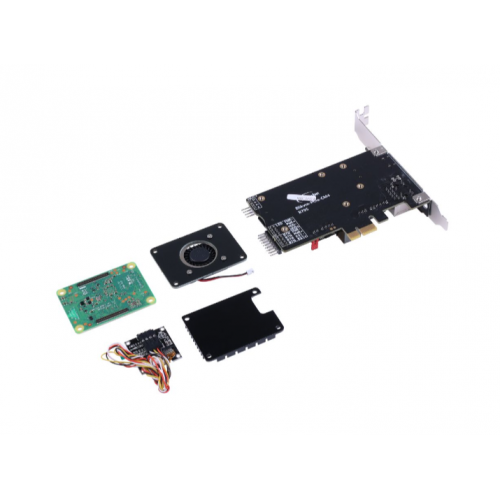

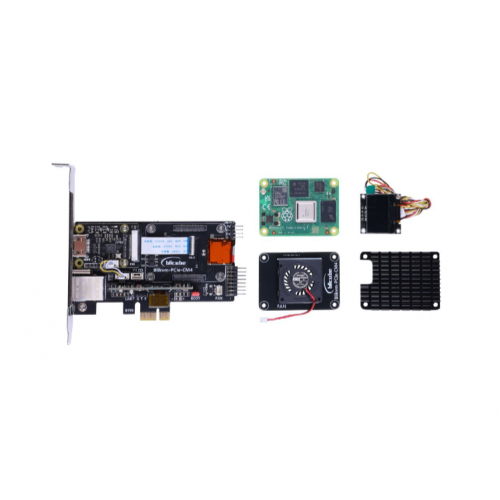

Package Includes:

  • 1 x BLIKVM PCIe add-in card
  • 1 x Raspberry Pi CM4 102000
  • 1 x Cooling fan
  • 1 x OLED display
  • 1 x 32G Micro SD card
  • 1 x HDMI cable 0.5m
  • 1 x HDMI Coupler
  • 1 x HDMI pass-through EDID emulator
  • 1 x USB-A to USB-C cable 1m
  • 1 x Dupont USB cable 0.4m
  • 1 x WiFi antenna
  • 1 x Dupont Cables 8pin Male to Male 40cm
  • 1 x Dupont Cables 8pin Male to Female 40cm
  • 1 x Metal heatsink
  • 1 x Phillips screwdriver
  • 1 xCross Wrench Sleeve

Write a review

Please login or register to review

BliKVM Plug-n-Play PCIe- Raspberry Pi CM4, KVM-over-IP, CM4102000 included, easy-to-use, 1920×1080@60Hz Video Output, OLED display, Support both PoE and USB

  • Brand: Seeed Studio
  • Product Code:Seeed-BliKVM-Plug-n-Play-PCIe
  • Reward Points:267
  • Availability:In Stock
  • रo 26,660.00

  • Price in reward points:26660

  • 50 or more रo 26,430.00
  • 100 or more रo 24,480.00
