The RADXA M.2 WiFi 6 and BT5.2 Wireless Module A8

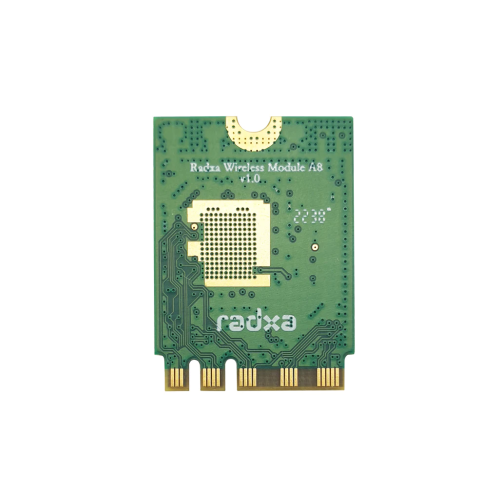

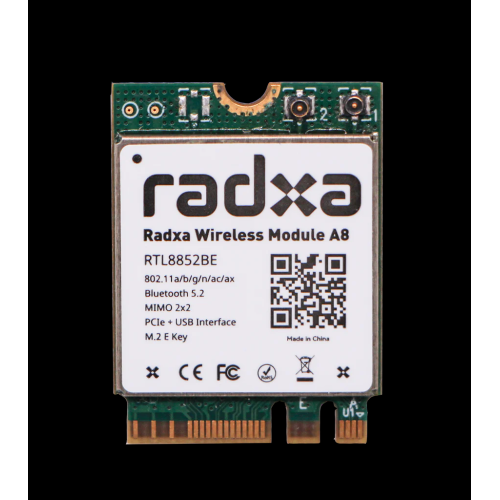

Radxa Wireless Module A8, a M.2 WiFi 6 and BT5.2 Combo Module based on Realtek RTL8852BE

It has the following features:

  • IEEE 802.11a/b/g/n/ac/ax compatible WLAN
  • DBBT5.0 (BT 5.2 Compliant)
  • Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band
  • Maximum PHY data rate up to
    • 286.8 Mbps using 20MHz bandwidth
    • 573.5Mbps using 40MHz bandwidth
    • 1201Mbps using 80MHz bandwidth
  • Backward compatible with 802.11a/b/g devices while operating at 802.11n data rates
  • Backward compatible with 802.11a/n/ac devices while operating at 802.11ax data rates
  • Compliance with Windows operating system host‑implemented FIPS 140‑2 security requirements
  • Support 20/40/80MHz 5GHz
  • supports WLAN‑Bluetooth coexistence
  • supports low power Bluetooth
  • Support Bluetooth 5 system (BT 5.2 Logo Compliant)
  • Compatible with Bluetooth v2.1+EDR
  • 2x uFL connector

Support for ROCK 3A and ROCK 5B

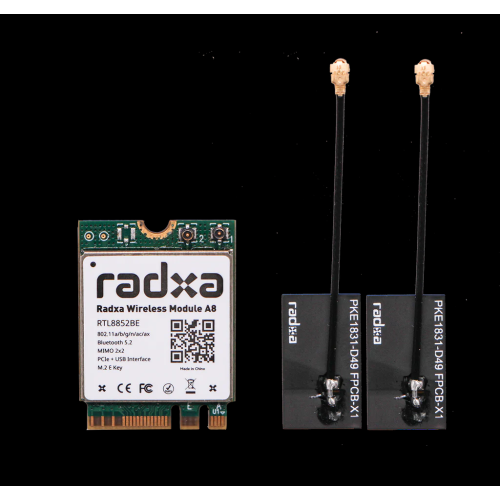

Package Includes:

  • 1 x RADXA M.2 WIFI 6 BT5 MODULE A8
  • 2 x uFL connector

Write a review

Please login or register to review

RADXA M.2 WIFI 6 BT5 MODULE A8

  • Brand: RADXA
  • Product Code:Alnt-RADXA-M.2-WIFI-BT5-MODULE-A8
  • Reward Points:16
  • Availability:In Stock
  • रo 1,630.00

  • Price in reward points:1630

  • 10 or more रo 1,615.00
  • 20 or more रo 1,605.00
  • 50 or more रo 1,590.00
  • 100 or more रo 1,580.00
