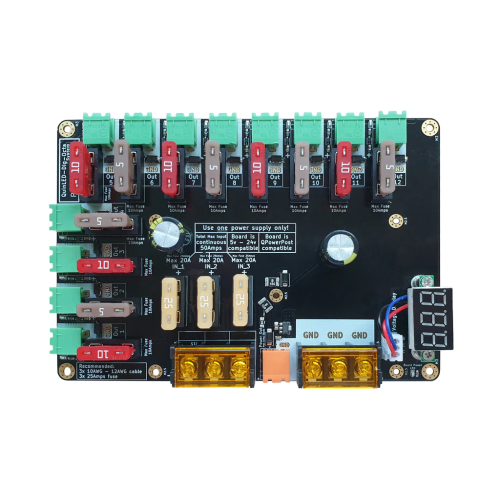

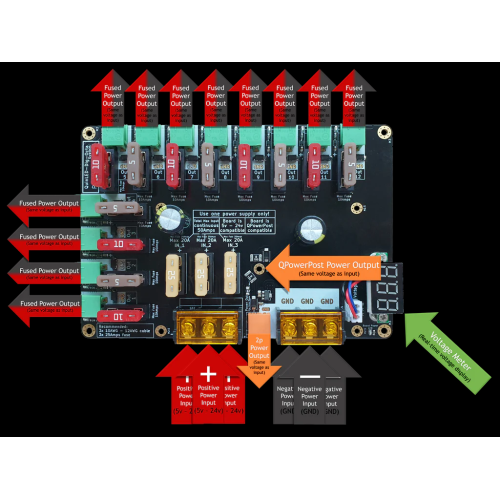

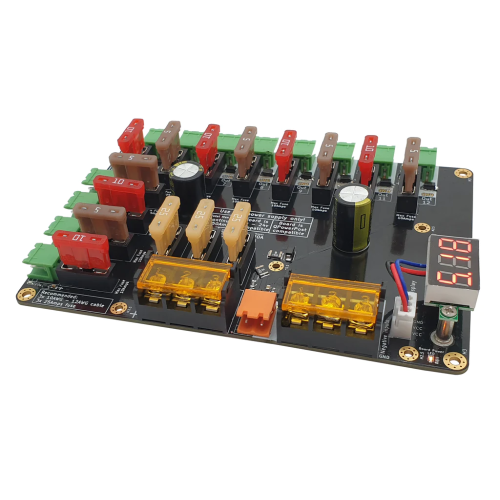

The Dig-Octa Power-5 power board provides stable power distribution via its 12 pluggable output terminals.
It is stackable and has the standardized form factor of all power boards in the Dig-Octa line of products.
Specifications :
- 3x 9.5mm “barrier block” input terminals for both positive and negative
- Board recommended max 50Amp continuous load total
- 12x 5.08mm pluggable output terminals
- 5v-24v capable
- “Broken Fuse” light per output
- Onboard capacitors
- Onboard Voltage display
- 4x M3 mounting holes
Features :
- Equipped with QPowerPost* (power distribution without wires)
- Additional 1x 5.08mm pluggable terminal (VCC and GND out)
what is QPowerPost?
QPowerPost is a smart and unique solution to supply power via power posts to the brainboard in a stack. All power boards in the Dig-Octa line of products provide this feature.
It allows a flexible and quick installation of the complete stack and works without additional wiring.
in deproduct details you find @QuinLED.info (pls follow the link)pth
Package Includes :
- 1 x QUINLED DIG-OCTA POWER-5
QUINLED DIG-OCTA POWER-5
- Brand: RADXA
- Product Code:NR-Alnt-QUINLED-OCTA-POWER-5
- Reward Points:53
- Availability:In Stock
-
रo 5,353.00
- Price in reward points:5353
-
- 3 or more रo 5,310.00
- 6 or more रo 5,267.00
- 15 or more रo 5,224.00
- 30 or more रo 5,181.00
