Rockchip RK3568 64bit quad core based SBC

The latest generation SBC based on RK3568 in the Pico-ITX form factor. Outstanding features, an optional industrial version and leading edge development standards make this SBC a highlight in this market segment.

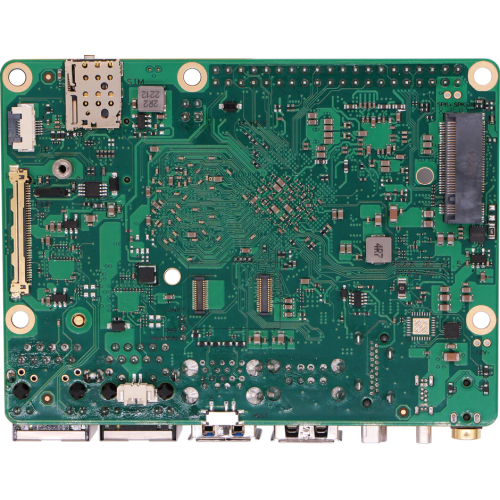

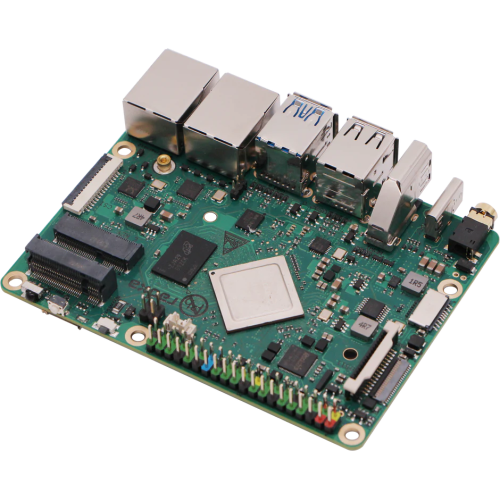

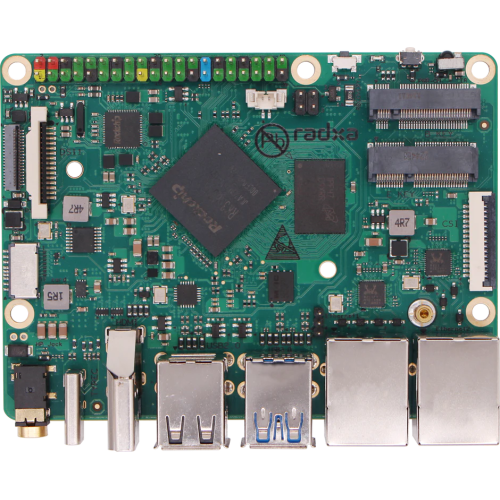

Rock 3B product details

RK3568* 64bit quad core processor

• Quad Core Cortex-A55 up to 2GHz


RK3568J for industrial variant

GPU

• Mali G52 GPU, OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1, high performance dedicated 2D processor


NPU

• 0.8T NPU


Memory LPDDR4

• 64bit dual channel LPDDR4@3200MT/s, 2, 4 & 8GB

• DRAM controller frequency up to 1560MHz


SPI Flash

• 16MB SPI flash soldered


Wifi/BT

• Wifi/BT with external M.2 module support


eMMC module (removable)

• Industrial level high performance eMMC storage, 16G/32G/64G/128G available


Micro SD card

• uSD slot supports up to 128G TF card


M.2 Interfaces

• M.2 connector M key (bottom) for NVMe with PCIe 3.0 x2 lanes (2280 SSD)

• M.2 connector E key (top) for WiFi & BT support (WiFi 4/5/6) (please check the available M.2 WiFi modules)

• M.2 connector B key (top) for 4G cellular with SIM card slot ( for 3042 B key modules)


Multiple Display Interfaces

• 1x HDMI 2.0 up to 4k@60 (CEC)

• 2x MIPI DSI (1x 4-lane MIPI DSI/LVDS and 1x 2-lane MIPI DSI)

• 1x eDP v1.3 with touch panel support (up to 2560X1600@60Hz)


Peripherals

• Audio 3.5mm jack with mic with improved mechanics

• HD codec that supports up to 24-bit/96kHz audio.

• Camera MIPI CSI

• MIPI CSI 2 lanes via FPC connector, support up to 8MP camera


USB A 3.0 x2

• upper one - USB3.0 OTG

• lower one - USB3.0 HOST


USB A 2.0 HOST x2

Network

Wireless / Bluetooth

• via optional M.2 WiFi/ BLE modules


LAN

• 2x GbE LAN with PoE support

• additional HAT is required for powering via PoE


IO 40-pin expansion header :

• - 5 x UART

• - 1 x SPI bus
• - 2 x I2C bus
• - 1 x PCM/I2S
• - 1 x CAN
• - 6 x PWM
• - 1 x ADC
• - 6 x GPIO
• - 2 x 5V DC power in
• - 2 x 3.3V power pin

Others

• RTC battery connector for time backup

• Power USB PD (new generation QC/PD protocol IC)

• Support USB Type C PD 2.0, 9V/2A, 12V/2A

• Power Supply Qualcomm® Quick Charge™

• Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

• Size 100.2mm x 74.2mm


Temperature range:

• RK3568 standard variant  0°C to 50°C

• RK3568J industrial variant  ‑40°C to 85°C

Essentials You Need

• ROCK 3B

• PD/QC compliant power adapter with USB- C port equal or larger than 15W
• Keyboard & Mouse
• Monitor with HDMI input
• optional M.2 WiFi module

Package Includes:

• 1 x ROCK 3B
