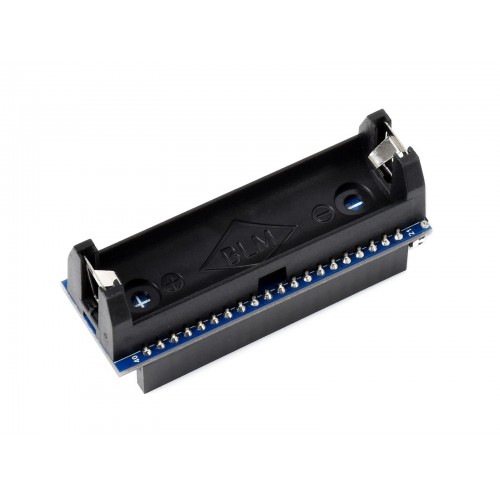

UPS Module For Raspberry Pi Pico, Uninterruptible Power Supply, Keeps Your Pico Running While Recharging, Monitoring Battery Status Via I2C.

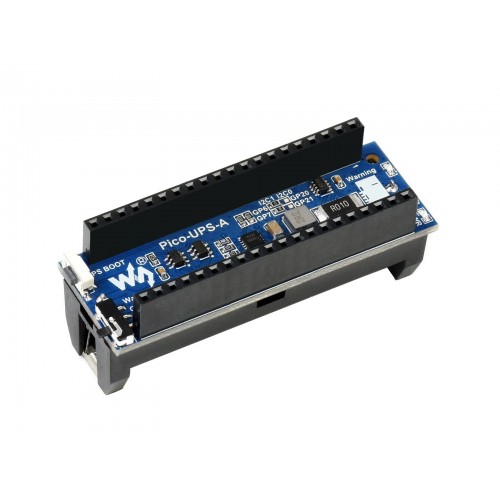

The Pico-UPS-A is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-ion battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus.

Features:

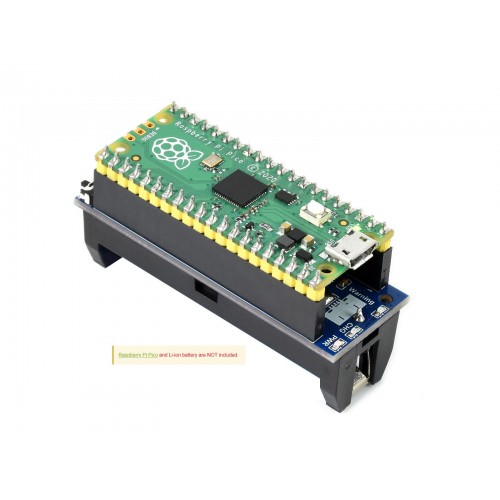

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Incorporates Li-ion battery switching charger with dynamic power path management, more stable power supply
  • I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
  • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
  • Onboard recharging indicator, power indicator, and battery warning indicator to check if the battery is connected correctly
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

  • Recharge Voltage: 5V
  • Control Bus: I2C
  • Display Panel: IPS
  • Battery Support: 14500 Li-ion Battery (not included)
  • Dimensions: 60x21mm

Warranty: 12 months

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x UPS Module for Raspberry Pi Pico - Uninterruptible Power Supply
