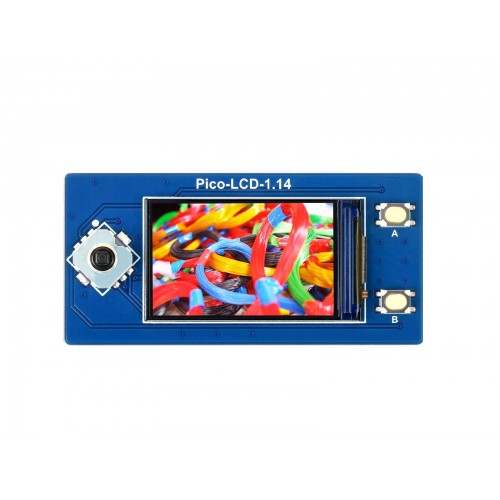

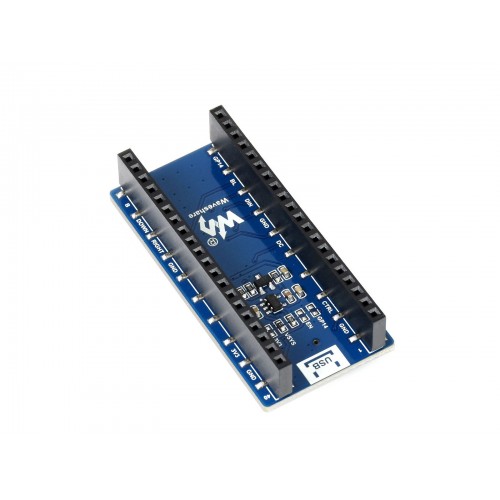

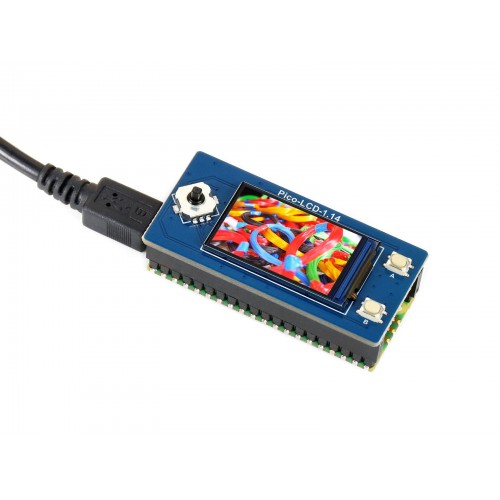

1.14inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×135 Pixels, SPI Interface.1.14 inch LCD Display Module is Embedded ST7789 Driver, Using SPI Bus.

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo.

Features:

  • 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, requires minimal IO pins
  • 4x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

  • Operating Voltage: 2.6-5.5v
  • Communication Interface: 4-Wire SPI
  • Display Panel: IPS
  • Driver: ST7789
  • Resolution: 240x135 pixel
  • Display Size: 24.91x14.86mm
  • Pixel Size: 0.1101x0.1035mm
  • Dimensions: 52x25mm

Documents:

Warranty: 12 months

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x 1.14inch LCD Display Module for Raspberry Pi Pico - 65K Colors - SPI

Write a review

Please login or register to review

1.14 inch LCD Display Module for Raspberry Pi Pico - 65K Colors - SPI

  • Brand: Seeed Studio
  • Product Code:Seeed-LCD-Display-Pico
  • Reward Points:12
  • Availability:Out Of Stock
  • रo 1,198.00

  • Price in reward points:1198

  • 70 or more रo 813.00
