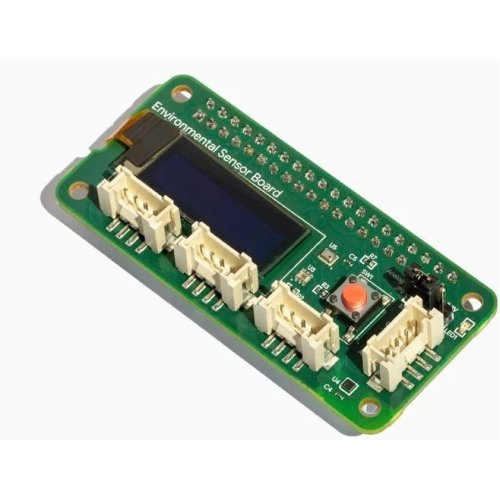

• Coral Environmental Sensor Board - G650-04023-01

The Environmental Sensor Board is an add-on board (also known as a pHAT or bonnet) that adds sensing capabilities to your Coral Dev Board or Raspberry Pi projects. (It includes an EEPROM for compatibility with Raspberry Pi boards.) The board provides atmospheric data such as light level, barometric pressure, temperature, and humidity. You can also attach additional sensors with the Grove connectors. The board also includes a secure cryptoprocessor with Google keys to enable connectivity with Google Cloud IoT Core services, allowing you to securely connect to the device and then collect, process, and analyze the sensor data.

Features:
  • 128x32 OLED display
  • Ambient light sensor (OPT3002)
  • Barometric pressure sensor (BMP280)
  • Humidity / temperature sensor (HDC2010)
  • Cryptoprocessor (ATECC608A) with Google keys
  • 40-pin GPIO female connector
  • Four Grove connectors: 1x UART 1x I2C 1x PWM 1x 3.3/5V analog
  • General purpose button
  • General purpose LED
Specifications:
  • EU RoHS - Compliant
  • ECCN (US) - 5A992.c
  • HTS - 8473.30.11.80
  • Type - Development Board
  • Supported Device - ATECC608A/BMP280/HDC2010/OPT3002
  • Supported Device Technology - Ambient Light/Board Mount Pressure/Temperature and Humidity
  • Interface Type - GPIO/I2C/PWM/UART
  • Operating Supply Voltage Range (VDC) - 3.3(Typ)
  • Product Weight (g) - 14
  • Product Length (mm) - 65
  • Product Width (mm) - 30

Package Includes:

  • 1 x Coral Environmental Sensor Board - G650-04023-01

Write a review

Please login or register to review

Coral Environmental Sensor Board - G650-04023-01

  • Product Code:ARO-G650-04023-01-pHAT
  • Reward Points:21
  • Availability:In Stock
  • रo 2,154.00

  • Price in reward points:2154

  • 5 or more रo 2,137.00
  • 10 or more रo 2,120.00
  • 30 or more रo 2,102.00
  • 60 or more रo 2,085.00
