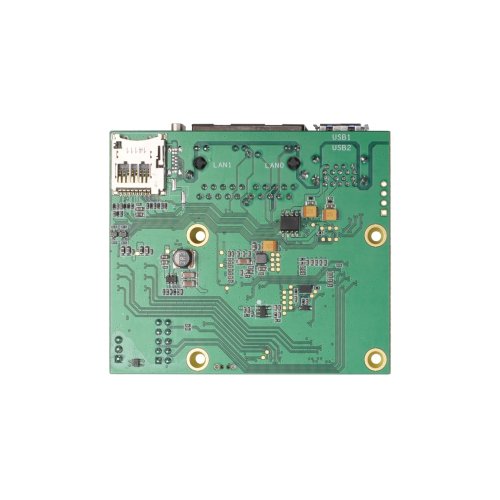

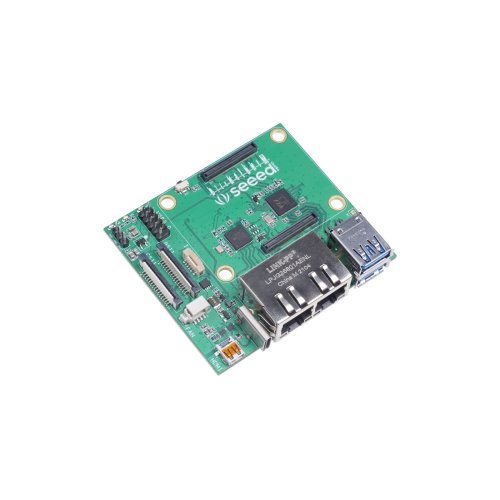

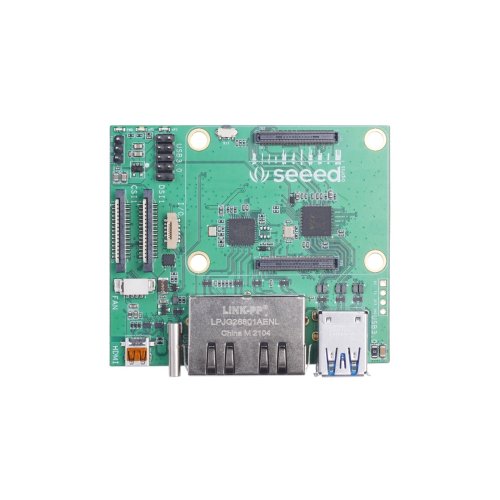

The Dual Gigabit Carrier Board powered by Raspberry Pi Compute Module 4 is equipped with Dual Gigabit Ethernet ports and dual USB 3.0 ports, making it suitable for soft router applications, while keeping the hardware to minimal.

It features a variety of I/O peripherals such as MIPI CSI, MIPI DSI, micro-HDMI to connect displays/ cameras, a standard 9-pin USB 3.0 header for more USB expansion, a micro-SD card slot, and an FPC connector, while maintaining a compact form factor! This board is ideal for HTPC makers, Linux developers, software router enthusiasts, and the majority of regular Raspberry Pi users.

Features:
  • Compact size (75x64x21mm) with rich I/O peripherals
  • Dual Gigabit Ethernet connectors for soft router applications
  • Camera/ display connectivity using MIPI CSI, MIPI DSI and micro-HDMI interfaces
  • Onboard dual USB 3.0 with an additional USB 3.0 9-pin header for more external ports
  • Micro-SD Card slot to load system image for non-eMMC version of CM4
  • More Expandability via FPC Connector (I2C, SPI)
  • External fan support with fan power connector
  • Power using USB Type-C

Specifications:

Networking Dual Gigabit Ethernet Connectors
USB 3.0 to GbE
(Gigabit Ethernet Bridge)
Microchip's LAN7800
USB 2 x USB 3.0 Ports
1 x USB 3.0 9-Pin Header
Storage Micro-SD Card Slot (load system Image for non-eMMC CM4 version)
Camera 1 x MIPI CSI Connector
Display 1 x MIPI DSI Connector
1 x Micro HDMI Connector
FPC Interface for I2C and SPI
External Fan Power connector for fan
Power 5V/3A using USB Type-C Port
LAN7800 Industrial
Temperature Range
-40°C to +85°C

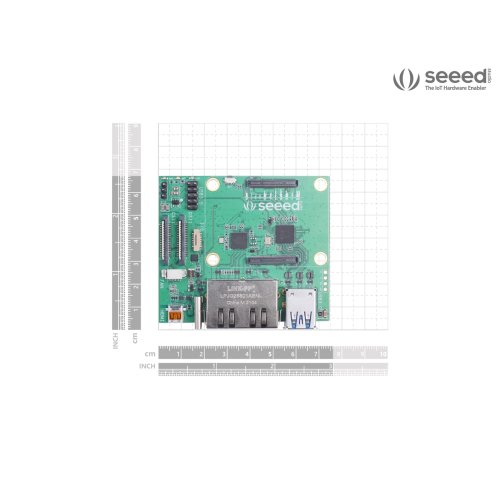

Dimensions 75x64x21mm
Weight 43g



Applications:

  • Software Router
  • IoT
  • Smart Home
  • Camera Projects

Package Includes:

  • 1 x Dual Gigabit Ethernet Carrier Board for Raspberry Pi Compute Module 4

Write a review

Please login or register to review

Dual Gigabit Ethernet Carrier Board for Raspberry Pi Compute Module 4 - PreOrder

  • Brand: Seeed Studio
  • Product Code:Seeed-RPi4-Carrier
  • Reward Points:60
  • Availability:In Stock
  • रo 5,999.00

  • Price in reward points:5999
