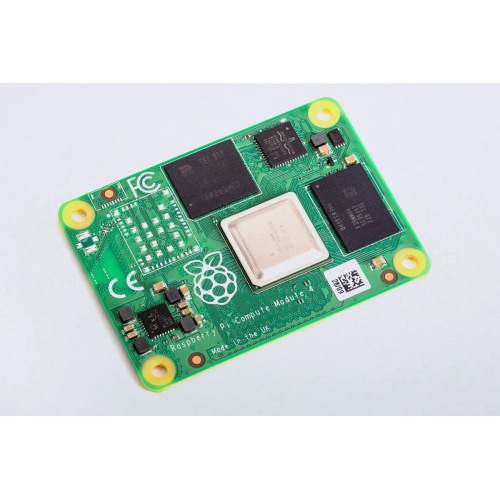

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.

Built on the same 64-bit quad-core BCM2711 application processor as Raspberry Pi 4, the Compute Module 4 delivers a step change in performance over its predecessors: faster CPU cores, better multimedia, more interfacing capabilities, and, for the first time, a choice of RAM densities and a wireless connectivity option.

The Raspberry Pi Compute Module 4 IO Board is an invaluable development tool. Exposing every interface from Compute Module 4, the IO Board provides a development platform and reference base-board design for the most powerful Compute Module yet, and is also designed for integration into end products.

New, more compact form factor

Compute Module 4 introduces a brand new form factor, and a compatibility break with earlier Compute Modules. Where previous modules adopted the JEDEC DDR2 SODIMM mechanical standard, with I/O signals on an edge connector, we now bring I/O signals to two high-density perpendicular connectors (one for power and low-speed interfaces, and one for high-speed interfaces).

This significantly reduces the overall footprint of the module on its carrier board, letting you achieve smaller form factors for your products.

Products to help you design with Compute Module 4

The Raspberry Pi Compute Module 4 IO Board is an invaluable development tool. Exposing every interface from Compute Module 4, the IO Board provides a development platform and reference base-board design for our most powerful Compute Module yet, and is also designed for integration into end products.

The Raspberry Pi Compute Module 4 Antenna Kit is certified for use with Raspberry Pi Compute Module 4.

Specifications:

  • Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.1, Vulkan 1.0
  • Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
  • Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
  • Option for fully certified radio module:
  • 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;
  • Bluetooth 5.0, BLE;
  • On-board electronic switch to select either external or PCB trace antenna

Documentations:

Package Includes:

  • 1 x Raspberry Pi Compute Module 4 2GB Ram-8GB EMMC

Write a review

Please login or register to review

Raspberry Pi Compute Module 4 With 2GB Ram-8GB EMMC

  • रo 4,197.00

  • Price in reward points:4197
