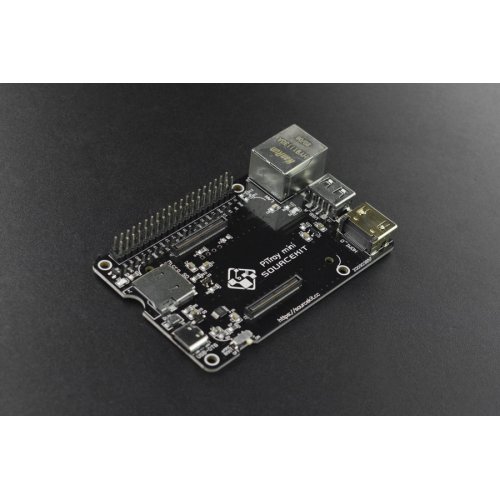

PiTray mini is a Model B liked carrier board for building cluster with Raspberry Pi Computed Module 4 (CM4). PiTray mini focuses on providing a neat and budget solution for CM4 applications. With the same outline and mounting holes with Raspberry Pi Model B, it can be stacked upon the existed cluster. CM4 got some advantages over Raspberry Pi 4B in industrial applications.

Specifications:
  • 1 x CM4 socket
  • 1 x Set of standard Raspberry Pi HAT connectors
  • 1 x Standard HDMI 2.0 connector
  • 1 x Gigabyte Ethernet RJ45 socket
  • 1 x Native USB 2.0 connector
  • 1 x SD card socket for CM4 variants without eMMC
  • 1 x USB Type-C connector for powering and also programming eMMC variants of CM4
  • 1 x Boot Mode Switch for programming mode and normal mode
  • 1 x RUN button for easy reset
  • 1 x Red Power LED
  • 1 x Green Activity LED
  • 2 x Mounting holes for CM4
  • 4 x CM4 corner marks for CM4 position guidance
  • Input power: +5V

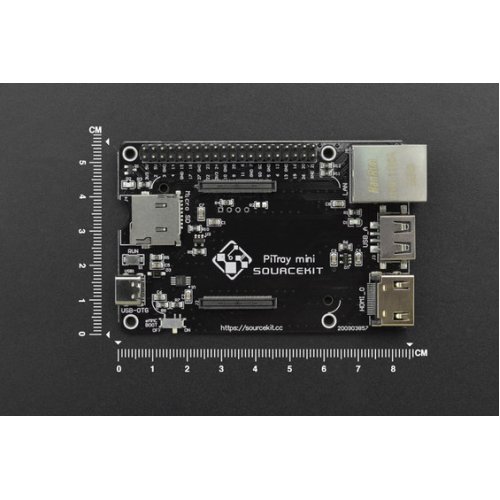

  • Dimensions: 85 mm x 56 mm
Documents:
Package Includes:
  • 1 x PiTray mini for Raspberry Pi Compute Module 4

Write a review

Please login or register to review

PiTray mini for Raspberry Pi Compute Module 4

  • Brand: DFRobot
  • Product Code:DFR-PiTray-mini-RPi
  • Reward Points:17
  • Availability:In Stock
  • रo 1,653.00
  • रo 1,435.00

  • Price in reward points:1708

  • 8 or more रo 1,646.00
  • 15 or more रo 1,639.00
  • 40 or more रo 1,596.00
