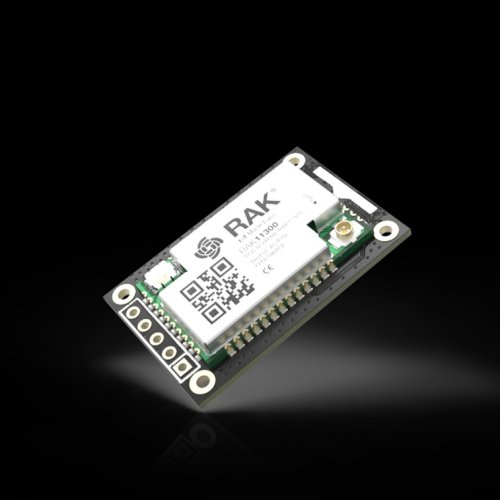

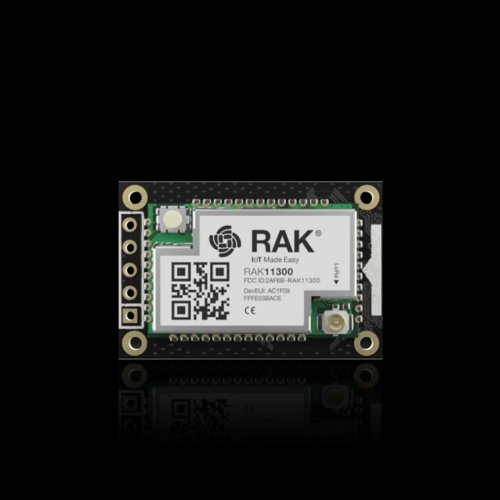

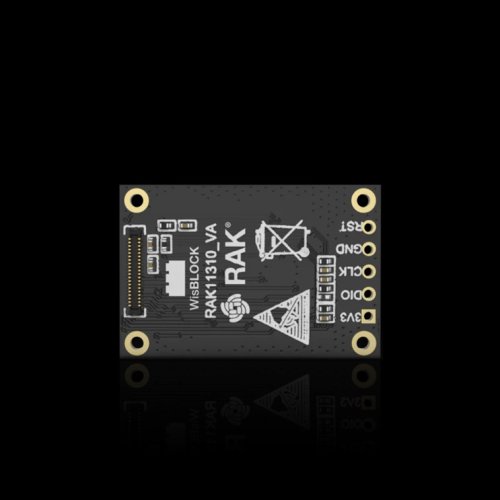

The RAK11310 module is based on the Raspberry Pi RP2040 MCU chip and part of the WisBlock Core series. And of course, we added the SX1262 LoRa transceiver chip to open the world of LoRa and LoRaWAN connectivity to this module. Even though this module has no WiFi on board, you can easily add it with the WisBlock Communication module RAK2305. Using the same small module size as our other WisBlock Core modules you can use it on the WisBlock Base board and attach up to 4 WisBlock Sensor modules and 1 WisBlock IO module.

RegionFrequency (MHz)Part Number
Europe EU433
RAK11300L
china CN470
RAK11300L
ChinaEU868
RAK11300
AmericaUS915
RAK11300
AustraliaAU915
RAK11300
KoreaKR920
RAK11300
AsiaAS923
RAK11300
India IN865
RAK11300
RussiaRU864
RAK11300

Features:

  • LoRaWAN 1.0.2 protocol stack (supports Class A & C)
  • Raspberry Pi RP2040
  • Dual M0+ Core
  • 133MHz CPU Clock
  • 246 kB RAM
  • 30 multifunction GPIO
  • SX1262 LoRa transceiver
  • Low power high range
  • LoRa transceiver
  • Worldwide frequency coverage

Documentation:

Package Includes:

  • 1 x  RAK11310
  • 1 x  Antenna for LoRa


Write a review

Please login or register to review

Raspberry Pi RP2040 Core Module for LoRaWAN with LoRa SX1262

  • Brand: Rakwireless
  • Product Code:NR-RAK-Raspberry-Pi-RP2040-Core-Module
  • Reward Points:15
  • Availability:In Stock
  • रo 1,480.00

  • Price in reward points:1480

  • 10 or more रo 1,469.00
  • 20 or more रo 1,457.00
  • 50 or more रo 1,445.00
  • 100 or more रo 1,433.00
