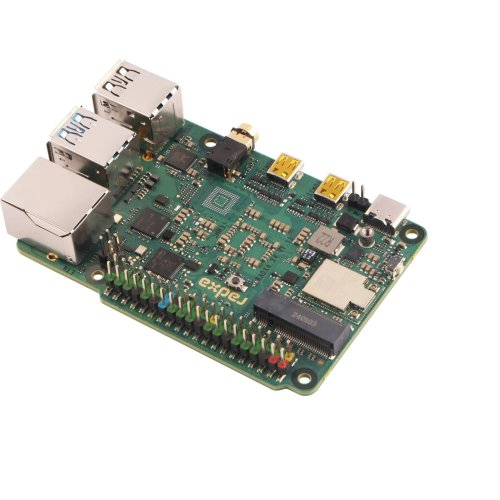

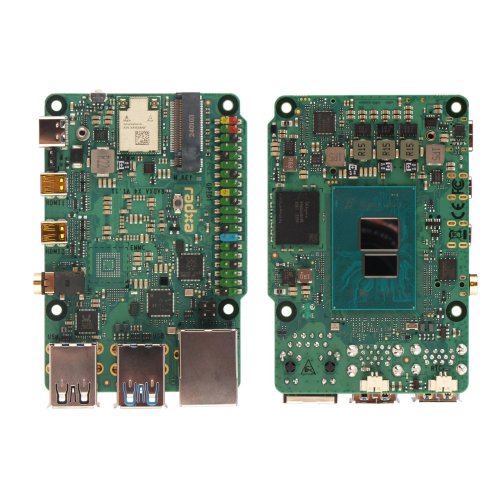

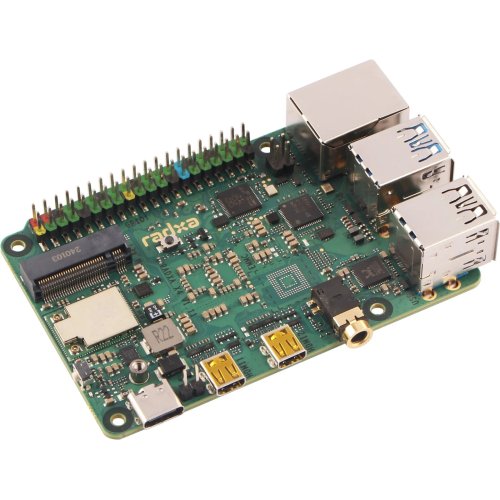

Intel N100 powered, high performance and competitive priced SBC by RADXA

Processor

Intel® Processor N100 (Alder Lake‑N)

• Total Cores: 4
• Total Threads: 4
• Max Turbo Frequency: 3.40 GHz
• Cache: 6 MB Intel® Smart Cache
• Intel® Gaussian & Neural Accelerator 3.0
• Intel® Image Processing Unit 6.0
• Support for Intel® Virtualization Technology

Intel® UHD Graphics

• Graphics Max Dynamic Frequency: 750 MHz
• DirectX Support: 12.1
• OpenGL Support: 4.6
• OpenCL Support: 3.0

RAM

• LPDDR5 RAM

• 4GB /8GB /16GB option


Optional Onboard eMMC

SPI Flash for BIOS

Interfaces

Dual Display

• output via 2 Micro HDMI ports up to 4Kp60


Audio

• 3.5mm headphone jack with mic input


Wireless (optional)

• IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.2 with BLE

• IEEE 802.11 a/b/g/n/ac (WiFi 5) and Bluetooth 5.0 with BLE


Storage

• 1x M.2 M Key Connector with PCIe 3.0 4-lane for M2 2230 NVMe SSD


USB

• 3x USB 3.0 5Gbps Type A HOST Ports

• 1x USB 2.0 Type A HOST port


Ethernet

• 1x 2.5 GbE LAN Port with PoE support (via optional PoE hat)


GPIO

The 40-pin expansion header, provided via RP2040, is compatible with many accessories which where developed for the SBC market.

• up to 2 x UART

• up to 2 x SPI
• up to 2 x I2C
• up to 16x PWM
• up to 8 x PIO (Programmable IO)
• 1 x 5V DC power in/out
• 2 x 3.3V DC power out

Other

• RTC Battery Socket

• 2-pin 1.25mm Fan Header
• 2x buttons:
• 1x power button

• 1x BOOTSEL button for RP2040

Software

•  Intel® 64‑bit Instruction Set

•  Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Instruction Set Extensions
•  Windows 11 64‑bit
•  Debian / Ubuntu Linux support

•  Hardware access/control library for Linux


Power

• USB Type‑C PD Version 2.0 with 12V/2A ( alternative via PoE HAT)

• The recommended power source should be able to produce at least 18W without power consuming devices on USB or 25W with full load on USB ports.


Size

• 58mm x 85mm

Operation temperature:

• 0°C to 60°C

Package Includes:

• 1 x RADXA X4
