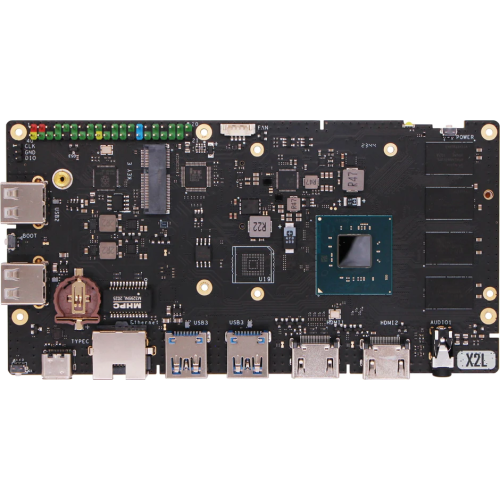

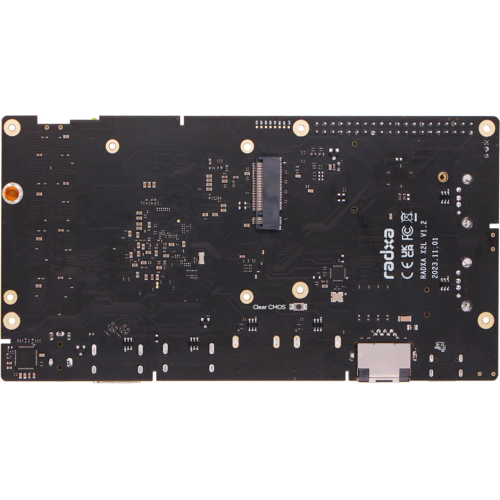

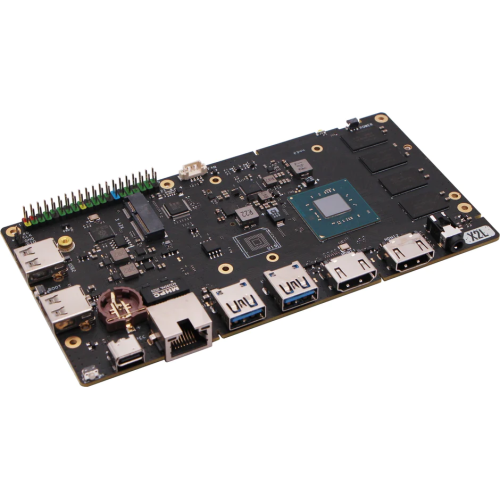

RADXA X2L

The new Intel® Celeron® J4125 based low profile SBC from RADXA

Processor

Intel®Celeron®Processor J4125

  • Quad-core processor / 4 Threads @ 2.00 GHz
  • Burst frequency 2.70 GHz

Intel® UHD Graphics 600

  • Graphics Base Frequency: 250MHz
  • Graphics Burst Frequency: 750MHz
  • DirectX Support: 12
  • OpenGL Support: 4.4

Memory

  • LPDDR4@2400 MT/s
  • 2GB /4GB /8GB options

Interfaces

Display

  • 2x HDMI with up to 4k@30

Audio

  • 3.5mm headphone jack with mic input

Wireless

  • 1x M.2 E Key Connector for WiFi / BT Module

Storage

  • 1x M.2 M Key Connector (4-lane PCIe 2.0) for M.2 NVMe SSDs (for OS boot and storage)

USB

  • 2x USB 3.0 HOST Type A
  • 2x USB 2.0 HOST Type A

Ethernet

  • 1x GbE LAN (RTL8111H)

IO

40-pin expansion header

  • up to 2 x UART
  • up to 2 x SPI
  • up to 2 x I2C
  • up to 8 x PIO (Programmable IO)
  • up to 16 x PWM
  • 1 x 5V DC power in
  • 2 x 3.3V DC power out

Other

RTC battery socket

4-pin 1.25mm fan header

3-pin debug header

4x buttons:

    • 1x power button
    • 1x BOOTSEL Button for RP2040
    • 1x User Button
    • 1x Clear CMOS Button

Software

  • Intel® 64 Instruction Set
  • Windows 10 64-bit
  • Debian / Ubuntu Linux support
  • Hardware access/control library for Linux

Power

  • USB PD, support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A.
  • Power adapter with fixed voltage in 9 to 20V range via the USB Type C port

Size

  • 80.6mm x 155.6mm

Operation temperature:

  • 0°C to 50°C

Certifications:

  • FCC, CE, RoHS

Availability:

  • until at least September 2030

Package Includes:

  • 1 x RADXA X2L

Write a review

Please login or register to review

RADXA X2L

  • Brand: RADXA
  • Product Code:NR-Alnt-RADXA-X2L
  • Reward Points:64
  • Availability:Order now and get it in 25 days
  • रo 6,423.00

  • Price in reward points:6423

  • 3 or more रo 6,372.00
  • 5 or more रo 6,321.00
  • 13 or more रo 6,269.00
  • 26 or more रo 6,218.00
