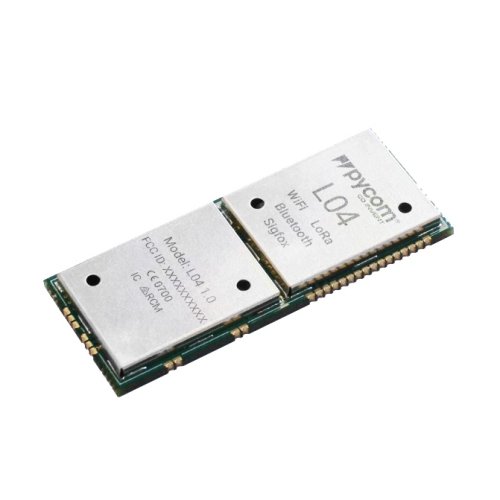

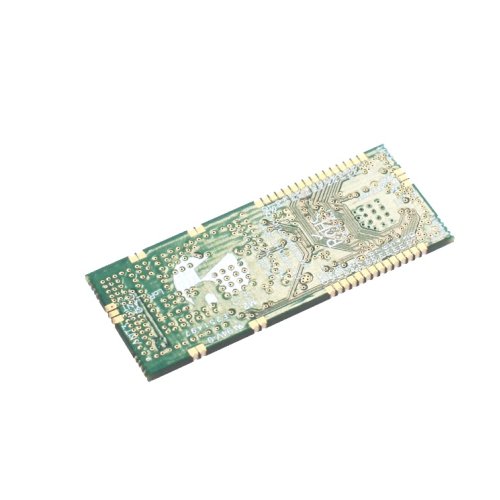

The L04 is the LoPy4 OEM module. It works just like the LoPy4 but we’ve trimmed a few bits to make it super easy to integrate. Quadruple network module: WiFi, Bluetooth, LoRa and Sigfox.

• Powerful CPU, BLE and state of the art WiFi radio
• Can also double up as Nano LoRa gateway
• MicroPython enabled
• Fits on the Pycom OEM Reference Board
• Ultra-low power usage: a fraction compared to other connected micro controllers

Processing :

• Espressif ESP32 chipset
• Dual processor WiFi radio System on chip
• Network processor handles the WiFi connectivity and the IPv6 stack
• Main processor is entirely free to run the user application
• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA

Operating Frequencies :

• RCZ1  868MHz (Europe)
• RCZ2  902MHz (US, Canada and Mexico)
• RCZ3  (Japan and Korea)
• CZ4  920-922MHz (ANZ, Latin America and S-E Asia)

Sigfox Specifications :

• Class 0 device. Maximum Tx power:
• 14dBm (Europe)
• 20dBm (America)
• 20dBm (Australia and New Zealand)
• Node range: Up to 50km
• Sigfox certified

Lora Specifications :

• Semtech LoRa transceiver SX1276
• LoRaWAN stack
• Class A and C devices

Lora Operating Frequencies :

• 868 MHz (Europe) at 14dBm maximum
• 915 MHz (North and South America, Australia and New Zealand) at 20dBm maximum
• 433 MHz (Europe) at 10dBm maximum
• 470 – 510 MHz (China) at 14dBm maximum

Range Specifications :

• Node range: Up to 40km
• Nano-gateway: Up to 22km
• Nano-gateway capacity: Up to 100 nodes

Interfaces :

• 2 x UART, 2 x SPI, I2C, I2S, micro SD card
• Analog channels: 8_12 bit ADCs
• Timers: 4_16 bit with PWM and input capture
• DMA on all peripherals
• GPIO: Up to 24

Security and Specifications :

• SSL/TLS support
• WPA Enterprise security
• FCC 2AJMTL04XXX
• CE 0700

Memory :

• RAM: 4MB
• External flash: 8MB
• Hardware floating point acceleration
• Python multi-threading

Hash/Encryption :

• SHA, MD5, DES, AES

WiFi :

• 802.1b/g/n 16mbps

Bluetooth :

• Low energy and classic

RTC :

• Running at 32KHz

Power :

• Input: 3.3V 5.5V
• 3v3 output capable of sourcing up to 400mA
• WiFi: 12mA in active mode, 5uA in standby
• LoRa: 15mA in active mode, 1-uA in standby
• Sigfox (Europe): 12mA in Rx mode, 42mA in Tx mode and 0.5uA in standby
• Sigfox (Australia, New Zealand and South America): 12mA in Rx mode, 120 mA in Tx mode and 0.5uA in standby

Package Contains :

1 x L04 OEM Module
