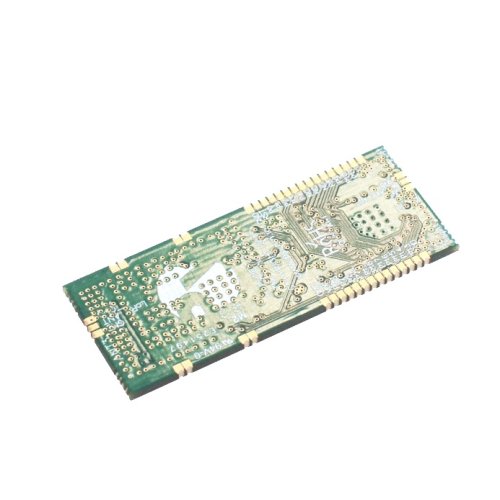

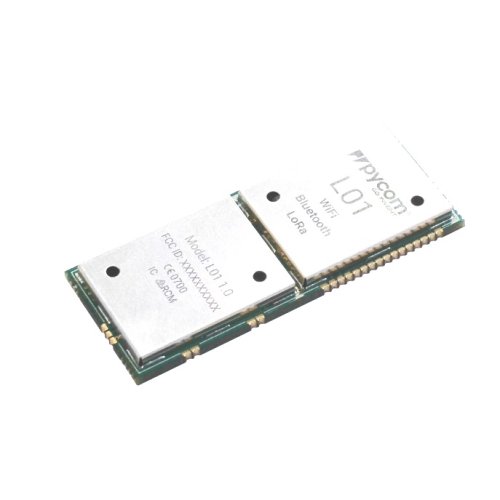

The L01 is the LoPy OEM module. It works just like the LoPy but we’ve trimmed a few bits to make it super easy to integrate. Triple network module: LoRa, WiFi and Bluetooth.

Features :

• Powerful CPU, BLE and state of the art WiFi radio
• Can also double up as a Nano LoRa gateway
• MicroPython enabled

Processing :

• Espressif ESP32 chipset
• Dual processor WiFi radio System on Chip.
• Network processor handles the WiFi connectivity and the IPv6 stack.
• Main processor is entirely free to run the user application.
• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.

• 868 MHz (Europe) at 14dBm maximum
• 915 MHz (North and South America, Australia and New Zealand) at 20dBm maximum

• Node range: Up to 40km
• Nano-Gateway: Up to 22km
• Nano-Gateway Capacity: Up to 100 nodes

Interface :

• 2 x UART, 2 x SPI, I2C, I2S, micro SD card
• Analog channels: 8×12 bit ADCs
• Timers: 4×16 bit with PWM and input capture
• DMA on all peripherals
• GPIO: Up to 24

• SSL/TLS support
• WPA Enterprise security
• FCC – 2AJMTL01XXX
• CE 0700

Memory :

• RAM: 4MB
• Flash Memory: 8MB
• Hardware floating point acceleration
• Python multi-threading
• Hash / encryption
• SHA, MD5, DES, AES

Wifi :

• 802.11b/g/n 16mbps

Bluetooth :

• Low energy and classic

RTC :

• Running at 32KHz

Power :

• Voltage Input: 3.3V regulated
• WiFi: 12mA in active mode, 5uA in standby
• Lora: 15mA in active mode, 10uA in standby
• 802.11b/g/n 16mbps

Package Contains :

1 x L01 OEM Module
