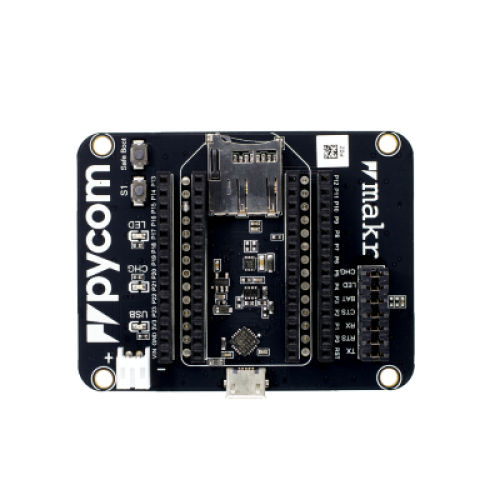

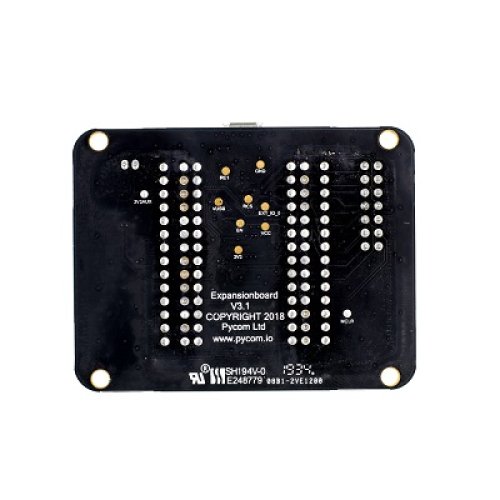

The Expansion Board 3.0 is compatible with the WiPy 3.0, LoPy4, SiPy, FiPy and GPy.
Features:
- USB and LiPo battery powered
- Custom PIC USB to serial converter with automatic bootloader mode
- LiPo battery charger (BQ24040), with options for two different charging currents (100mA and 450mA)
- TPS2115A with reverse voltage protection
- MicroSD card slot
- JST style battery connector
- Power LED and charge status LED
- One user LED and one user switch
- Button to enter into “safe mode” easily
- Battery voltage monitoring via the WiPy ADC
- Lots of jumpers to enable/disable features
- Size: 65 x 50 x 8mm
Packange Includes:

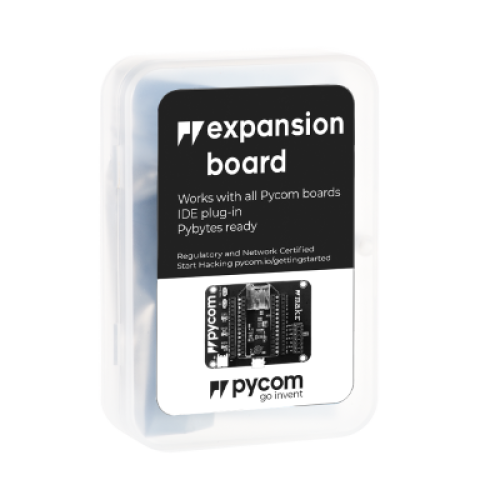

- 1 x Expansion Board 3.0 / 3.1
Expansion Board 3.0 / 3.1
- Brand: Pycom
- Product Code:Pycom-Expansion-Board-3.0
- Reward Points:25
- Availability:Back-order
-
रo 2,403.00
- Price in reward points:2503
-
- 5 or more रo 2,393.00
- 10 or more रo 2,383.00
- 55 or more रo 2,363.00
