The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 6 seconds!

Features:

  • Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack.
  • Speedy Rapid Warmup: Reaches operating temperature in 6 seconds. Support for on-demand rapid boost feature.
  • Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
  • Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
  • Auto standby mode engages when it is not in use ensuring the user safety.

Specifications:

  • PACKAGE
    • Dimensions: 15cm x 9cm x 2.2cm
  • BODY

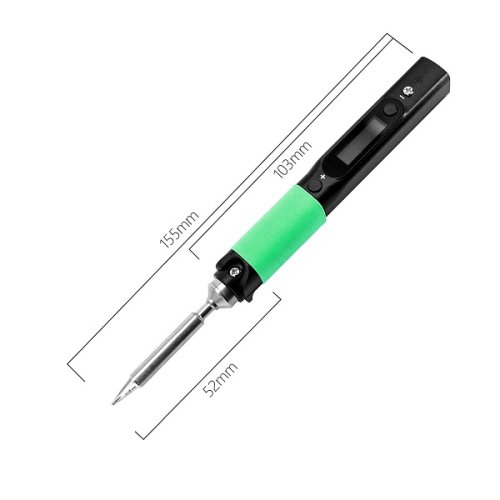

    • Dimensions:  155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
    • Weight: 28g with solder tip / 18g without solder tip
    • Build:  Plastic with metal clip (Handle)
    • Color: Black (case)/ Green (Sleeve)
  • PLATFORM
    • OS: Ralim’s IronOS build
    • Chipset: Buffalo BL-706
    • CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
  • DISPLAY
    • Type: OLED White Colour Monochrome Display
    • Size: 0.69 inches
    • Resolution: 96x16pixels
  • MEMORY
    • Internal Flash Memory: 192KB
    • System Memory: 132KB SRAM
    • Expansion: None

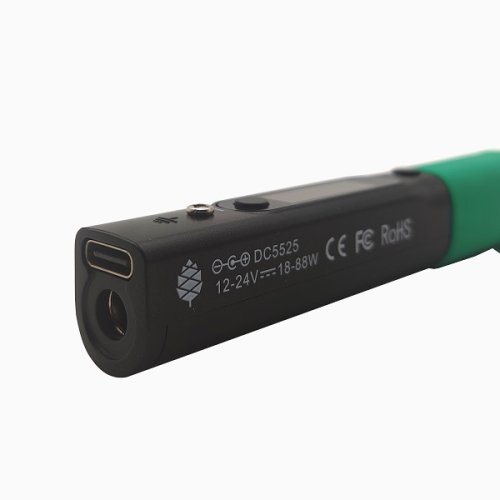

  • POWER PORTS
    • USB type C: PD and QC 3.0 12V-20V 3A
    • Barrel Jack: DC5525, 12V-24V DC 3A

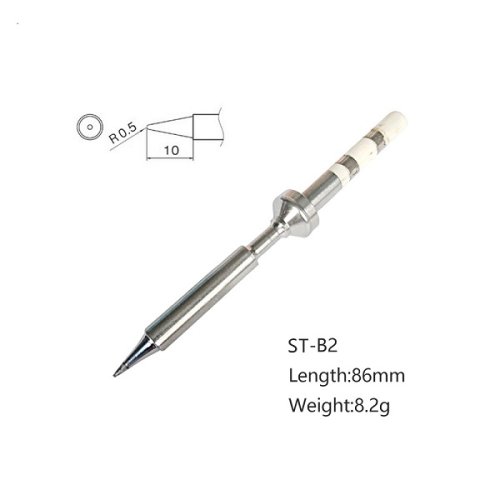

  • TIP
    • Type B2
    • Length: 86mm
    • Weight: 8.2g
  • FEATURES
    • Capable received power from either USB-C port or barrel jack.
    • GPIO break-out thru USB-C port
  • CERTIFICATION
    • FCC
    • CE RED
    • ROHS

Warranty:

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

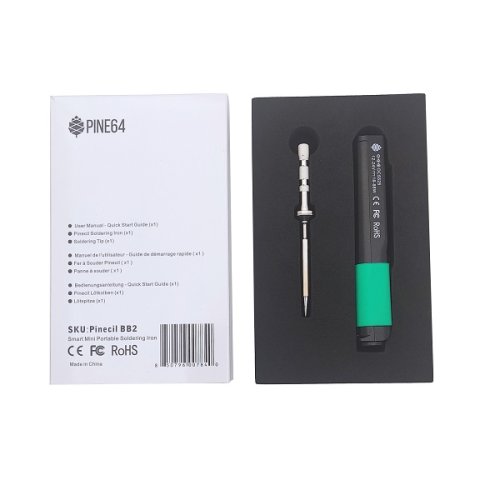

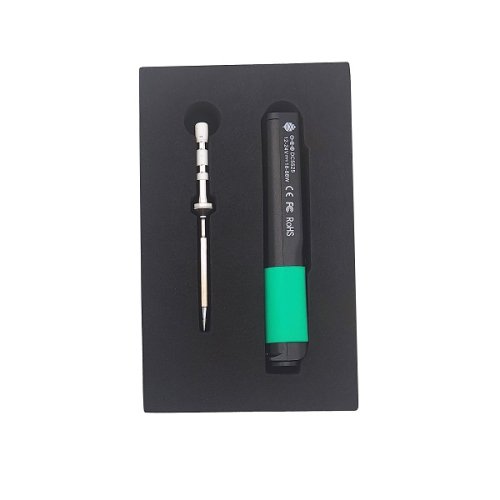

Package Includes:

  • 1 x Pinecil Soldering Iron
  • 1 x ST (Short Tip)-B2 Soldering Tip
Processor Specifications
Processor SiFive E24 Core
Operating System (OS) Ralim’s IronOS build
Architecture 32-bit RISC-V SoC
Memory Specifications
RAM 132KB SRAM
Flash 192KB
Connectivity
USB type C: PD and QC 3.0 12V-20V 3A
Display Specifications
Resolution 96x16pixels
Physical Attributes
Weight 28g with solder tip / 18g without solder tip
Dimensions 155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
Additional Information
Warranty

Write a review

Please login or register to review

PINECIL – Smart Mini Portable Soldering Iron V2

  • Brand: Pine64
  • Product Code:P64-Pinecil-V2
  • Reward Points:40
  • Availability:In Stock
  • रo 3,712.00

  • Price in reward points:4035

  • 8 or more रo 3,680.00
  • 20 or more रo 3,648.00
