Many people who enjoy electronics as a hobby or in education (where budgets are always tight) don't always need a super-high-end oscilloscope but instead rather require something that is very affordable yet highly usable in practice.

The PCB-scope is just that - simple to use, yet with a full feature set as you will find on professional instruments. The Windows software is free of charge and the PCB-scope connects via a standard micro-USB cable (as used by most cameras, mobile phones and e-readers, not included).

PCB-scope grew out of the earlier DPScope project to see how a PCB based scope design could be simplified yet still give the functionality, look and feel of a real oscilloscope. It is primarily geared towards education and beginners and is ideal for use within PICAXE microcontroller projects.

PCB-scope highlights:
  • Oscilloscope, logic analyzer and datalogger in one instrument.
  • Two analogue input channels (for scope and datalogger modes) - many of the low-end scopes on the market only have a single channel which makes them very limited as you often need to display one signal with respect to another (e.g. clock vs. data), or trigger on a signal different to the one you want to look at.
  • Four digital input channels (for logic analyzer and datalogger modes)
  • Triggering on CH1, a dedicated trigger channel, or free running. (Logic analyzer can trigger on any of the digital channels).
  • Trigger on rising or falling edge (selectable), or free running.
  • Covers the typical applications in a hobby/PICAXE environment: Analogue signals like audio (0 - 20 kHz), ultrasound, infrared sensors (38 kHz), servo motor control (a few kHz). Logic signals like e.g. RS-232, CAN, I2C, SPI, one-wire. Slow changing signals like temperature sensors etc.
  • Spectrum analyzer functionality (real-time Fast Fourier Transformation) so one can look at things like 50 (or 60) Hz interference, distortion in an audio amplifier or look for oscillations in a power supply.

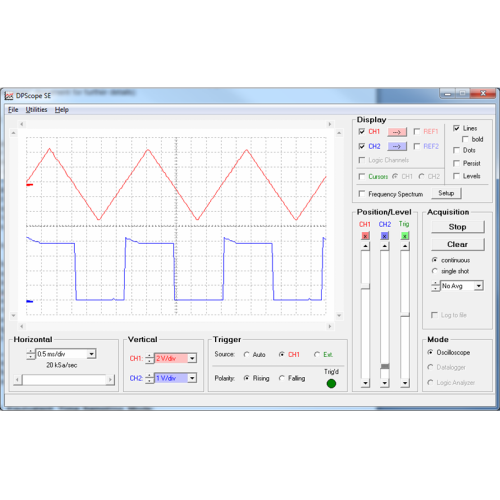

  • Fast and smooth acquisition - shows the signals "as they happen", with a screen update rate up to 20 frames/sec.
  • Wide input range - from millivolts to > 20V (> 200V with an optional 1:10 scope probe)
  • Very low-cost
  • Small and easy to use so even a user without much experience with oscilloscope gets a quick start, and compact so it doesn't use much desk space.
  • Uses standard micro USB to connect to a computer as well as for power supply

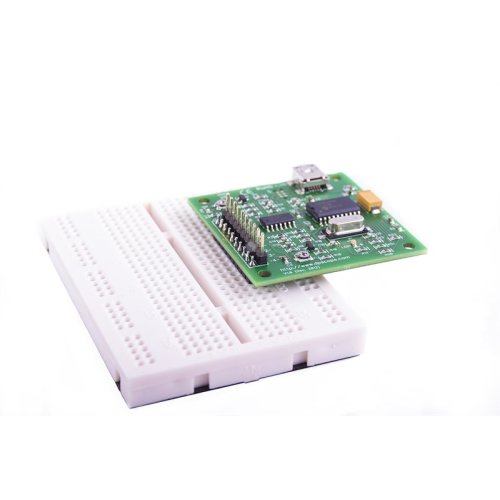

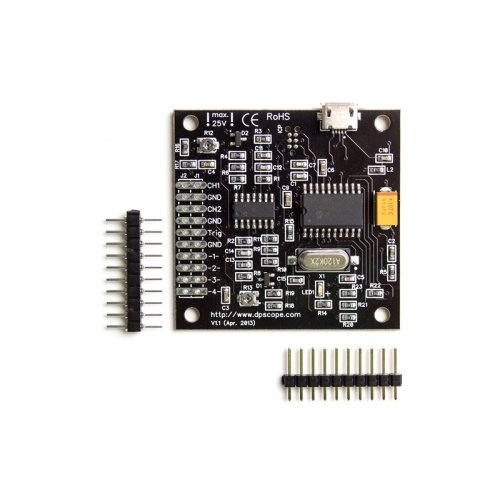

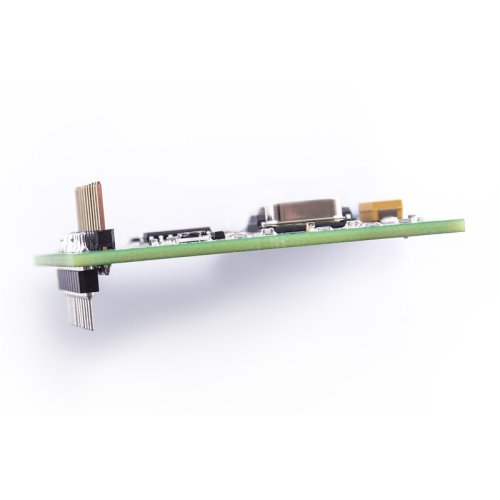

  • Dual connectors (supplied) for easy breadboard connection.

Specification:
  • Number of analogue (scope) channels         : 2 signal channels + external trigger input
  • Number of digital (logic analyzer) channels : 4
  • Analogue bandwidth (scope channels)         : > 300 kHz
  • Input impedance : Scope channels                : 1 Mohm || 15 pF Ext. trigger: high impedance Logic analyzer: high impedance
  • Signal connection                                              : Scope: 0.1" jumper posts Logic analyzer: 0.1" jumper posts.
  • Vertical sensitivity (analog channels)            : 50 mV/div to 2 V/div (1:1 probe)
  • Logic threshold (logic analyzer channels)    : TTL (also works for 5V / 3.3V / 2.5V CMOS, RS-232)
  • Vertical resolution                                              : 8 bits (scope mode) 10 bits (datalogger mode)
  • Vertical offset                                                       : +/-6 divisions
  • Maximum voltage range                                    : Scope inputs: -24V ... 24V (1:1 probe) External trigger input: -1 ... +6V
  • Offset adjustment                                                : Yes
  • Max. sample rate (single shot)                         : Scope: 50 kSample/sec Logic analyzer: 1 MSamples/sec
  • Max. sample rate (repetitive signals)              : 2 MSamples/sec (scope mode only)
  • Timebase settings                                              : Scope: 5 usec/div ... 1 sec/div Logic analyzer: 10 usec/div ... 1 sec/div Datalogger: 0.5 sec/div ... 1 hr/div
  • FFT (frequency spectrum) frequency range  : Up to 25 kHz
  • Trigger source                                                    : Scope mode: CH1, external, auto (free run)Logic analyzer: any of the 4 digital channels
  • Trigger polarity                                                   : Rising edge,falling edge
  • Max. trigger rate                                                 : Scope: ~60 kHz Logic analyzer: > 1 MHz
  • Record length (normal mode)                         : Scope mode: 200 points/channel FFT (frequency spectrum): 400 points/channel Logic Analyzer: 850 points/channel                                                                                          Datalogger (roll) model: unlimited
  • Max. screen refresh rate                                  : Up to 20+ frames/sec (both channels on) (sufficiently fast PC required)
  • Datalogger mode (roll mode)                         : Yes (data can be logged to file in real time)
  • Real-time FFT                                                    : Yes
  • FFT filters                                                            : Rectangular, Hanning, Hamming, Blackman
  • Averaging                                                           : Yes (1 / 2 / 5 / 10 / 20 / 50 / 100)
  • Display styles (can be combined)                  : Points, Vectors (Lines), Infinite Persistence
  • Fully automated measurements                     : Level: low, high, mid level, amplitude,DC average, AC RMS Time: period, frequency,duty cycle, pos. width, neg. width,                                                                                     rise time, fall time
  • Waveform cursors                                             : Yes (horizontal and vertical pairs)
  • Waveform export (e.g. to Excel)                     : Yes (CSV format)
  • Save/restore of scope set ups                        : Yes
  • PC connection                                                   : USB (HID device), no special driver needed
  • PC software                                                       : Windows 2000, XP (SP3), Vista, 7, 8
  • Minimum screen size                                       : 1024 x 768 pixel
  • Power supply                                                     : Through USB (5V / 70mA)
  • Microcontroller and USB interface                : Fully pre-programmed; no programming required
Resources:
