Propeller Project Board USB is for projects that need a permanent home. Its low cost, feature-rich, and simple design is ideal for most any project using the Propeller P8X32A multicore microcontroller.

The core Propeller programming circuitry is built into the board, with access to all 32 I/O pins. It is programmable in visual BlocklyProp, Propeller C, and its native Spin and Assembly languages.

Thoughtful features such as power and over-voltage LEDs and well-placed labels on both sides of the board help make circuit-building fast and accurate. The reset button, USB, power, and optional connectors are all set at right angles for easy access when the finished project is mounted in an enclosure.

Features:

Programming-ready with surface-mount Propeller P8X32A, 64 KB EEPROM, and 5 MHz removable crystal
USB Mini-B connector for programming and power is compatible with USB charging devices

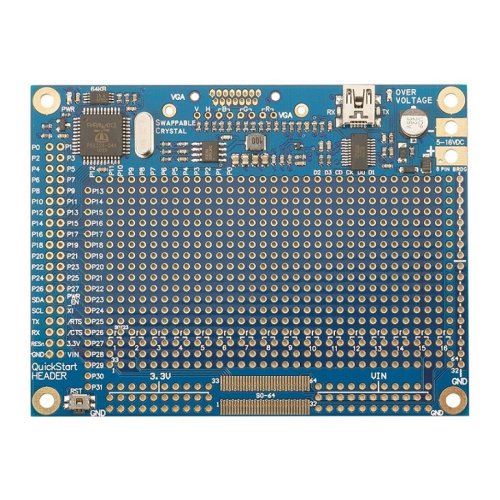

Large 5.75 square-inch prototyping area with 580 thru-hole connections provides plenty of room for your project's components
Built-in pads and circuitry make it easy to add a microSD card holder and VGA connector
SOT-23 pads and custom-designed 64-pin SMT pads accommodate a wide variety of IC packages
40-pin header accepts add-on boards made for the Propeller QuickStart

Specifications:

Surface-mount Propeller P8X32A-Q44
64 KB EEPROM
5.00 MHz removable crystal
USB Mini-B programming
64-pin SMT pads for SO type SMD, 0603, 0805, 1206, SOT-223, CDFP and SSOP
Power and Over Voltage LEDs
16 labeled SOT-23 pads
Pads and circuitry for VGA connector (Not included, fits EDAC Inc. 634-015-274-992; Digi-Key #151-1125-ND)
Pads and circuitry for microSD card holder (Not included, fits Hirose #DM3D-SF, Digi-Key #H126097CT-ND)
External power pads accept:
- 12 AWG wire,
- alligator clips,
- screw terminal
- center-positive barrel jack connector
VIN on board 16 V @ 3 A max
3.3 VDC Switching Regulator 1 A
VIN on board 16 V @ 3 A max
Power Requirements: USB power or 5 to 16 VDC via external input
Communication: USB Mini-B for serial-over-USB
Dimensions: 3.05 X 4 in (7.7 X 10.2 cm)
Operating temperature: -40 to +185 °F (-40 to +85 °C)
