The P2 Edge Module with 32MB RAM is a simple way to get started with the Propeller 2 multicore microcontroller. In addition to speeding development, this module provides an optimal P2 building block for system integrators and designers to include in their products.
  • The Propeller 2 P2X8C4M64P is an 8-core 32 bit CPU with 32-bit timers, 64-bit CORDIC math solver, and custom analog pad rings with Smart-pin functionality at all 64 I/O pins. Each Smart I/O pin is capable of many autonomous analog and digital functions, including ADC, DAC, PWM, USB, SERIAL, Waveform generation, SMPS, Comparator, SCHMITT and LOGIC modes.

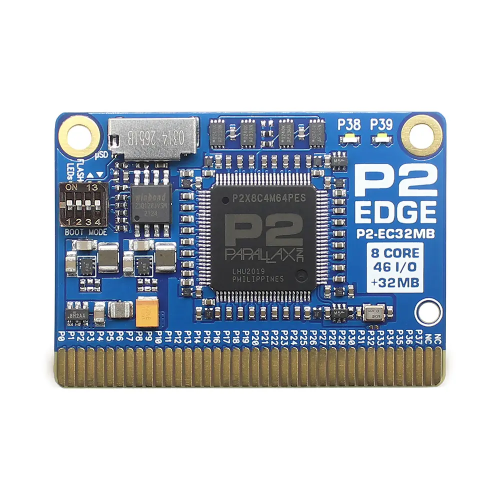

  • The P2 Edge Module with 32MB RAM includes the 100-pin TQFP P2X8C4M64P, core and I/O power regulators, power filtering capacitors, crystal, flash memory, boot configuration switches, microSD card socket, and two user-configurable on-board LEDs to indicate system states. This version of the Edge module adds 32MB of RAM to the original P2-EC, and has 46 free I/O’s available at the edge connector. The PCB’s multi-layer design features solid thermal and signal reference planes isolating each signal layer. The design is optimized for low-noise analog and digital operation, and with low temperature rise even at high-speed operation.

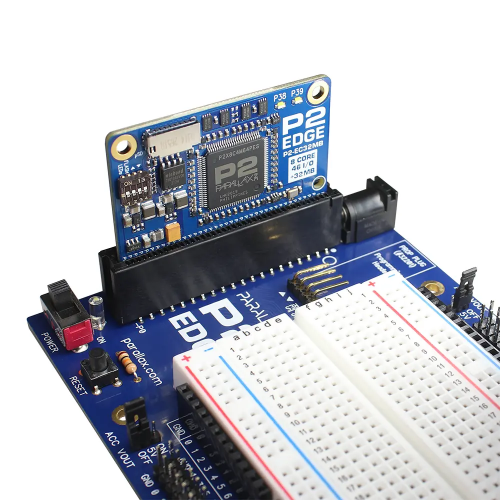

  • For development, the P2 Edge Module fits in the card edge socket of the spacious P2 Edge Module Breadboard, the compact P2 Edge Mini Breakout Board, or the bare-bones P2 Edge 80-pin Adapter Kit.  For product integration,  several edge socket choices are available from our P2 Components shop page. This arrangement allows developers to integrate the Propeller 2 into products without the need for multi-layer cost or expertise.
  • See our Propeller 2 Documentation page and our Propeller Programming Tools Comparison Chart for more resources; you may also sign up for our P2 Newsletter here.
Features:
  • Compact module with Propeller 2 P2X8C4M64P multicore microcontroller
  • 6-layer* low noise, system-on-board module
  • Integrated thermal plane for low temperature rise characteristics at high speed operation
  • Double-sided 80 way 0.05 inch (1.27 mm) edge connector
  • Orientation / module locking hole
  • Two mounting holes connected to the module ground planes
  • High-precision 20 MHz TCXO oscillator (+/-0.5 PPM)
  • Adjustable operating frequency; recommended maximum 180 MHz clock
  • Overclocking possible beyond 300 MHz; see the P2 forum for discussion
  • 16 MB SPI Flash memory and microSD card socket for flexible memory management

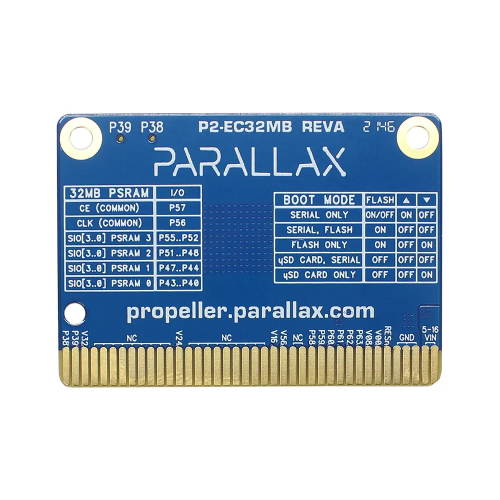

  • 32 MB 16-bit PSRAM arranged as 4x 4-bit blocks, and accessible up to 1x 16-bit with typical burst speeds of 308 MB/s
  • 46 Smart I/O pins brought out to the edge connector and 18 Smart I/O pins dedicated to the on-board RAM
  • Buffered LEDs on I/O pins P38 and P39, visible from both sides of the module PCB
  • Onboard LED feature enable/disable switch
  • Onboard 1.8 V 3-amp* switching regulator with short-circuit, over-current fault and brownout protection for the P2 core (VDD)
  • Onboard 3.8, V 3-amp* switching regulator with short-circuit and over-current fault protection to supply the low-noise IO regulators for maximum efficiency*
  • Onboard low-noise LDO 3.3 V regulators for the P2 smart-pins (VIO), with short-circuit and over-current fault protection
  • Wide 5-16 VDC power supply input range with reverse polarity protection
  • Compatible with the Prop Plug for system programming
Specifications:
  • Voltage input requirements: 5-16 VDC
  • Input current requirements: 100 mA recommended min, 500-1000 mA typical
  • Voltage input protection: reverse voltage
  • Propeller 2 chip: P2X8C4M64P (8 cogs, 512 KB shared hub RAM, 64 smart pins)
  • Non-volatile memory: 16 MB (128 Mb) SPI Flash
  • Volatile memory: 32 MB (256 Mb) PSRAM
  • Oscillator: TCXO 20 MHz +/-0.5PPM
  • Smart I/O pins: 46 accessible, 40 fully free, grouped in 8 sets of 8 I/Os
  • Smart I/O pin logic voltage: 3.3 V
  • Internal VDD Power Supply: 1.8 V up to 3 A*, 750 kHz* nominal switching frequency
  • VIO power supplies: low noise LDO 3.3V up to 300 mA per 8 I/O pins
  • Edge connector: double sided 80 way 0.05” (1.27 mm) pitch edge slot
  • Programming: serial up to 2 Mbaud
  • Operating temperature: -40 to +185 °F (-40 to +85 °C)
  • PCB dimensions: 1.45 in x 2.04 in (37mm x 51.7mm)

Documentations:

Package Includes:

  • 1 x Parallax P2 Edge Module with 32MB RAM
