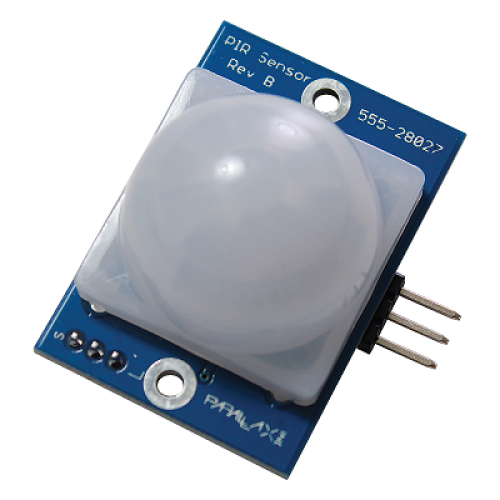

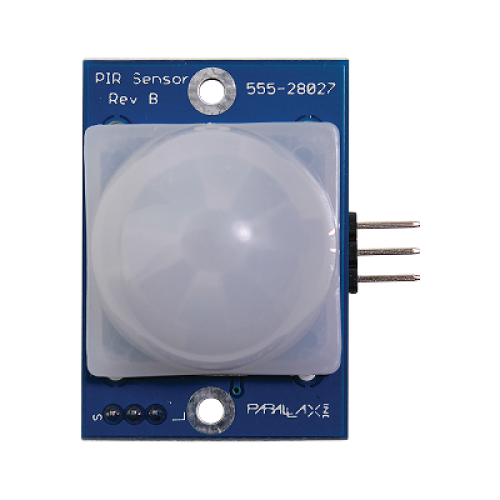

The PIR Sensor detects motion by measuring changes in the infrared (heat) levels emitted by surrounding objects. When motion is detected the PIR sensor outputs a high signal on its output pin.

NOTE: The product information found on this page currently pertains to Revision B of this product, which provides many updates and features from Revision A. Some of these include:

  • Longer detection range, selectable by onboard jumper
  • Wider supply voltage, from 3 to 6 VDC
  • Higher output current provides for direct control of an external load
  • Mounting holes included for permanent projects
  • All parts SMT

Key Features:

  • Typically detects a person up to approximately 30 ft away, or up to 15 ft away in reduced sensitivity mode
  • Jumper selects normal operation or reduced sensitivity
  • Approximately 90 degree field of view
  • Onboard LEDs light up the lens for fast visual feedback when movement is detected

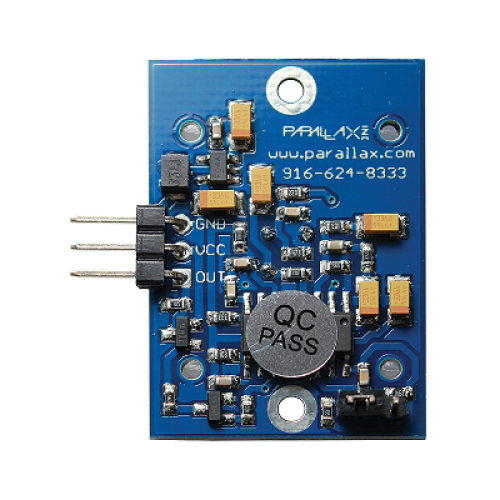

  • Mounting holes for 2-56 sized screws provide easy integration in permanent applications
  • 3-pin SIP package perfect for breadboard-friendly projects
  • Easy communication with any microcontroller
  • Small size makes it easy to conceal

Application Ideas:

  • Motion-activted nightlight
  • Alarm system
  • Animated holiday props

Details:

  • Source current up to 12 mA @ 3V, 23 mA @ 5V
  • Voltage requirements: 3 to 6 VDC
  • Current requirements: 130 uA idle, 3 mA active (no load)
  • Communication: Single bit high/low output
  • Dimensions: 1.41 x 1.0 x 0.8 in (3.6 x 2.5 x 2.0 cm)
  • Operating temp range:  32 to 122 °F (0 to 50 °C)

Resource:

Additional Resources:

Package Includes:

  • 1 x Parallax 555-28027 PIR Sensor with LED Signal

Write a review

Please login or register to review

Parallax 555-28027 PIR Sensor with LED Signal

  • Brand: Parallax Inc.
  • Product Code:Plx-555-28027-PIR-Sensor
  • Reward Points:20
  • Availability:In Stock
  • रo 2,015.00

  • Price in reward points:2015

  • 7 or more रo 2,000.00
  • 15 or more रo 1,985.00
  • 35 or more रo 1,970.00
  • 75 or more रo 1,955.00
