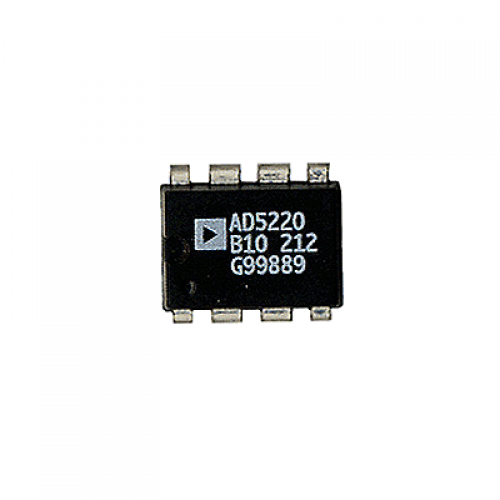

• Parallax AD5220 10K Digital Potentiometer
The AD5220 provides a single channel, 128-position digitally controlled variable resistor device. This device performs the same electronic adjustment function as a potentiometer or variable resistor. These products were optimized for instrument and test equipment push-button applications. A choice between bandwidth or power dissipation is available as a result of the wide selection of end-to-end terminal resistance values.
Features:
  • 128 Positions
  • Potentiometer Replacement
  • 10 kΩ, 50 kΩ, 100 kΩ
  • Very Low Power: 40 mA Max
  • Increment/Decrement Count Control
Specifications:
  • Power requirements: 2.7 to 5.5 VDC
  • Communication: interface analog
  • Dimensions: 0.43 x 0.28 x 0.195 in (109 X 71 X 82.5 mm)
  • Operating temperature range: -40 to + 185 °F (–40 to +85 °C)
Applications:
  • Mechanical Potentiometer Replacement
  • Remote Incremental Adjustment Applications
  • Instrumentation: Gain, Offset Adjustment
  • Programmable Voltage-to-Current Conversion
  • Programmable Filters, Delays, Time Constants
  • Line Impedance Matching
  • Power Supply Adjustment
Documentation:
Package Includes:
  • 1 x Parallax AD5220 10K Digital Potentiometer

Write a review

Please login or register to review

Parallax AD5220 10K Digital Potentiometer

  • Brand: Parallax Inc.
  • Product Code:NR-Plx-AD5220-10K-Digital-Potentiometer
  • Reward Points:7
  • Availability:In Stock
  • रo 736.00

  • Price in reward points:736

  • 10 or more रo 699.00
  • 20 or more रo 694.00
  • 40 or more रo 688.00
  • 90 or more रo 646.00
  • 225 or more रo 641.00
