• Parallax 64018 P2 Edge 80-pin Adapter Kit

The P2 Edge 80-Pin Adapter provides a compact breakout for the P2 Edge Module (#P2-EC) and P2 Edge Module with 32MB RAM (#P2-EC32MB), bringing all of the Propeller 2 multicore microcontroller pins to 4 rows of 20-way standard 0.1” pin header pads.

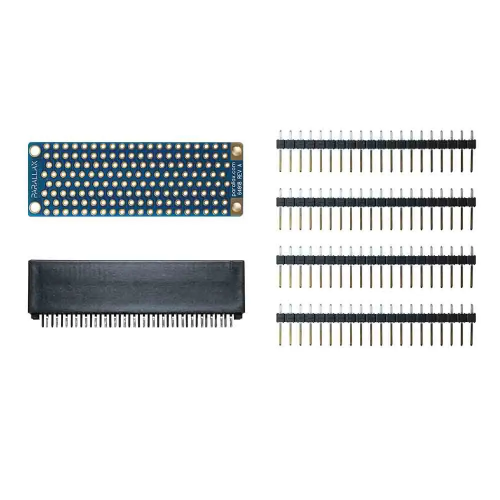

  • This adapter is supplied as a kit comprising the PCB, vertical edge socket and four 1×20 0.1” pin headers. The kit ships un-assembled to provide  complete flexibility.
  • The top two mounting holes are connected to the top-side copper plane and the two non-connected P2-Edge pads. These holes could be left isolated or connected to a signal or power rail as required.
  • The bottom two mounting holes are connected to the bottom-side copper plane and the two 5VDC P2-Edge Module Power Input pads.
  • The 20-pin header spacing is suitable for a breadboard. One possible configuration would be to solder the outer header pins downward, and the inner header pins upward. In this way, the adapter may be plugged into a breadboard, and the upward pins would be accessible to jumper wires.
  • A Prop Plug (#32201) will be required to program the P2 Edge Module, sold separately.

Features:

Specifications:

  • Operating temperature: -40 to +185 °F (-40 to +85 °C)
  • Mounting holes: 2.4mm diameter
  • PCB Dimensions: 2.3 x 0.8 in (58.5 x 20.3 mm)

Documentations:

Package Includes:

  • 1 x P2 Edge 80-pin Adapter PCB (#300-64018)
  • 4 x 20-pin Headers, 0.1: spacing (#450-00307)
  • 1 x 80-pin Edge Connector Socket – Vertical (#450-00310)

RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
