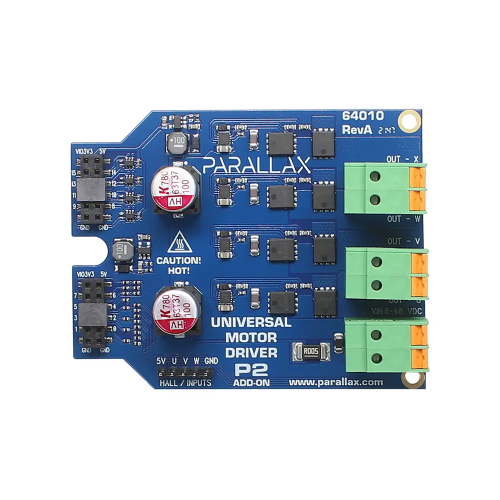

The Universal Motor Driver P2 Add-on Board was designed as an accessory for the Parallax Propeller 2 eight-core microcontroller. It is compatible with standard P2 dual-port accessory headers found on the Propeller 2 Evaluation Board (#64000), P2 Edge Module Breadboard (#64020), and P2 Edge Mini Breakout Board (#64019).

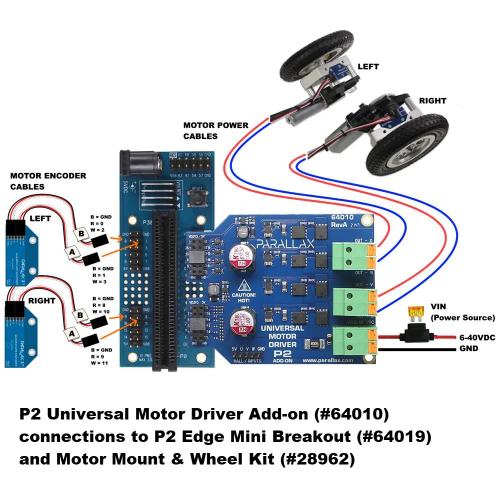

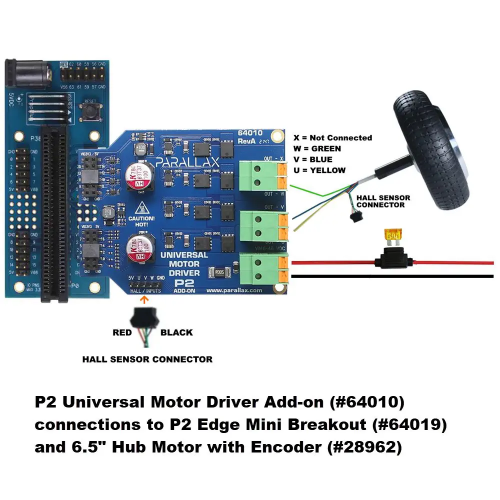

  • This 4-phase motor driver add-on supports experimentation and development with many motor types, including brushed and brushless motors. For example, it could support a single brushless 3-phase BDLC motor, a 4-phase stepper motor, or two standard brushed (2-wire) DC motors.  It is the recommended motor driver for the 6.5″ Hub Motor with Encoder.
  • For example, it could support a single brushless 3-phase Hub Brushless DC (BDLC) motor, a 4-phase stepper motor, two brushed bi-directional DC motors or four brushed uni-directional DC motors. With a 3-phase motor, both sinusoidal 180° and classic 120° drive techniques are supported.
  • The open design and standard 0.1” connectors allow the Universal Motor Driver P2 Add-on Board to be used with other microcontrollers as well.

Features:

  • Universal 4-phase motor driver using four MIC4604 MOSFET drivers
  • Phases can be controlled individually or in groups to support many motor types including single or 3-phase motors, single/dual DC motors or 4-phase stepper motors
  • Siunsoidal 180° or classic 120° drive topology
  • Each phase allows individual control of High and Low sides
  • High and Low sides protected against simultaneous activation
  • On-board Hall effect sensor connector for motor control feedback
  • Common current feedback signal for motor control and over-current protection
  • Independent voltage feedback signals for each phase, for motor control and over-voltage protection
  • Under-voltage protection built into the MOSFET drivers
  • High-current spring terminal connectors for quick and robust connections to high-current motors
  • Two grounded 0.125 inch (3.2 mm) mounting holes

Specifications:

  • Input voltage range: 6–40 VDC
  • Maximum continuous supply current: 20A
  • Maximum surge motor current: 60A
  • P2 board connector: dual 2×6 pass-thru headers with 0.1″ spacing
  • Power and motor cable connection method: Push-in spring connection, nominal 2.5 mm²
  • Communication Interface: 3.3V TTL, PWM
  • VIN and Output Channel Spring Terminal Blocks: 32 A 400 V rated
    • Conductor cross section solid : 0.2 mm² – 4 mm²
    • Conductor cross section AWG : 24–12
    • Stripping length : 10 mm
  • Operating temperature range: -40 to +185 °F (-40 to +85 °C)
  • PCB dimensions: 2.52 x 3.15 in (64 x 80 mm)

Documentations:

Package Includes:

  • 1 x Parallax 64010 Universal Motor Driver P2 Add-on Board

Write a review

Please login or register to review

Parallax 64010 Universal Motor Driver P2 Add-on Board

  • Brand: Parallax Inc.
  • Product Code:NR-Plx-64010-Universal-Motor-Driver
  • Reward Points:93
  • Availability:In Stock
  • रo 9,270.00

  • Price in reward points:9270

  • 2 or more रo 9,195.00
  • 3 or more रo 9,125.00
  • 8 or more रo 9,050.00
  • 16 or more रo 8,975.00
