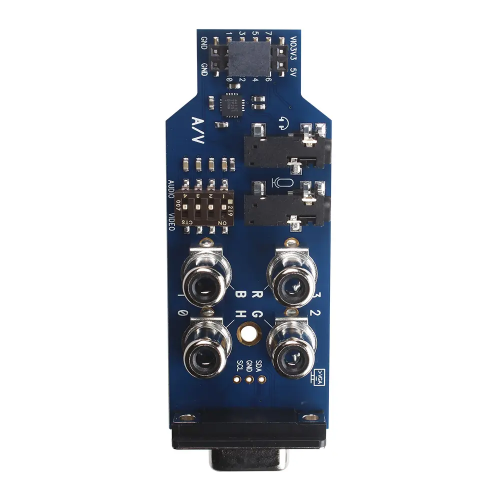

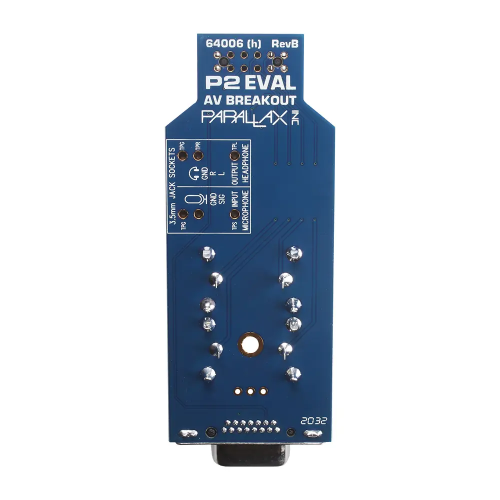

The P2 Eval AV Breakout Add-on Board speeds development for Propeller 2 multicore microcontroller projects requiring audiovisual accessories.  This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.

Features:

  • Amplified Audio Out (80mW) / Headphone Socket (3.5 mm Stereo Jack)
  • Audio Input / Microphone Socket (3.5 mm Mono Jack)
  • Audio-to-RCA 4-band
  • Component Video-to-RCA 4-band (Composite Sync, RGBS)
  • Digital component video (RCA Socket)
  • Composite Video (RCA Socket)
  • VGA (15-pin VGA socket)
  • PCB Dimensions: 3.2 x 1.3 in (8.13 x 3.3 cm)

Some features share the same IO pins and sockets. The A/V board features a dip switch which allows switching the 4x RCA sockets from Audio to Video mode.

See the Product Guide under Downloads for the complete I/O pin function descriptions. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.

PCBs assembled, tested, and completed in Rocklin, California, USA.

Documentations:

Package Includes:

  • 1 x Parallax 64006H P2 Eval AV Breakout Add-on Board
