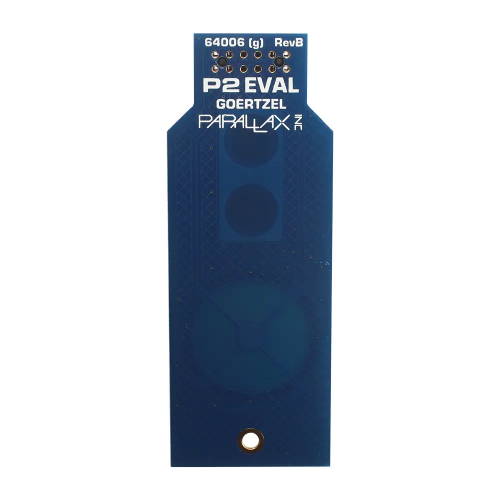

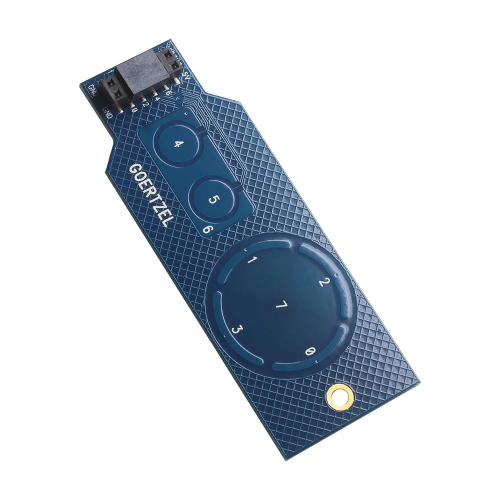

The P2 Eval Goertzel Add-on Board (Rev B) is a touch switch and non-contact position-sensing human input device for your Propeller 2 multicore microcontroller projects.  Pads 0,1,2,3 and 7 are designed as a set of non-contact Goertzel input pads,  while pads 4, 5 and 6 are typically used as on/off (switch style) inputs.
Features:
  • Circular Goertzel non-contact pad array (four directions plus center)
  • Three on-off touch switch pads
  • PCB Dimensions: 3.2 x 1.2 in (8.13 x 3.01 in)
  • See the Product Guide download for I/O pin assignments. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
  • PCBs assembled, tested, and completed in Rocklin, California, USA.
Documentations:
Package Includes:
  • 1 x Parallax 64006G P2 Eval Goertzel Add-on Board

Write a review

Please login or register to review

Parallax 64006G P2 Eval Goertzel Add-on Board

  • Brand: Parallax Inc.
  • Product Code:NR-Plx-64006G-P2-Eval-Goertzel
  • Reward Points:10
  • Availability:In Stock
  • रo 1,035.00

  • Price in reward points:1035

  • 15 or more रo 1,030.00
  • 30 or more रo 1,020.00
  • 70 or more रo 1,010.00
  • 140 or more रo 1,005.00
