The P2 Eval Digital Video Out Add-on Board provides an HDMI-type connector which can be used for experimenting with various video standards in your Propeller 2 multicore microcontroller projects.

This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.

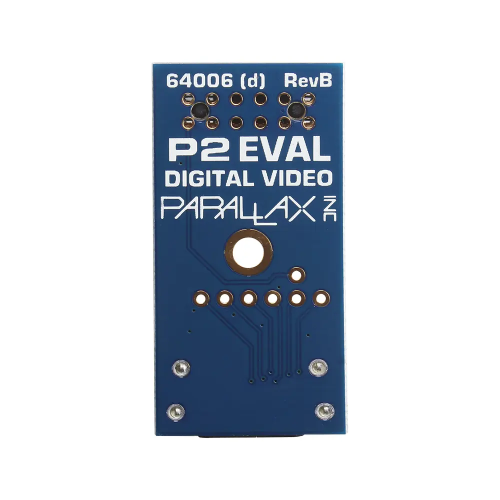

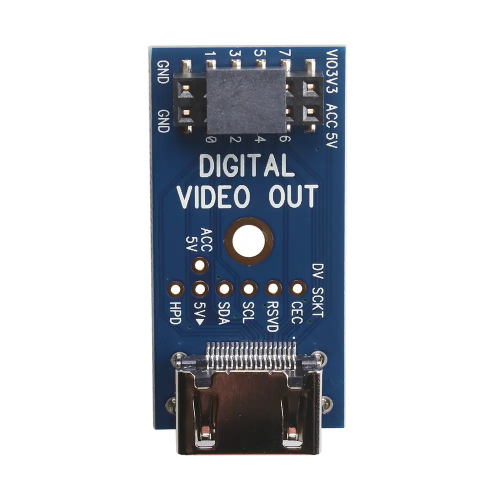

  • Unused signal pins from the video connector are labelled on the PCB next to an unpopulated 0.1” pitch row of 6 pads: CEC, RSVD, SCL, SDA, 5V, HPD.
  • Beside the 5V output pad is another pad labelled “ACC 5V”. That is the 5V supply from the accessory socket. Some video monitors require a 5V signal connecting to the 5V pin, so these two pads with 0.1” spacing make that convenient. For example, a 0.1” pitch header could be soldered here, and a shunt plug used when 5V is required to the monitor.
Features:
  • HDMI connector
  • Direct connection to CLK-, CLK+, D0-, D0+, D1-, D1+, D2-, D2+
  • Plated thru-holes for accessing 6 unused video connector pins
  • Plated thru-hole for accessing the 5V supply from the accessory socket
  • Center mounting hole
  • PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
See the Product Guide download for I/O pin assignments. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
PCBs assembled, tested, and completed in Rocklin, California.
Documentations:

Write a review

Please login or register to review

Parallax 64006D P2 Eval Digital Video Out Add-on Board

  • Brand: Parallax Inc.
  • Product Code:NR-Plx-64006D-P2-Eval-Digital
  • Reward Points:13
  • Availability:In Stock
  • रo 1,350.00

  • Price in reward points:1350

  • 10 or more रo 1,340.00
  • 20 or more रo 1,325.00
  • 55 or more रo 1,315.00
  • 110 or more रo 1,305.00
