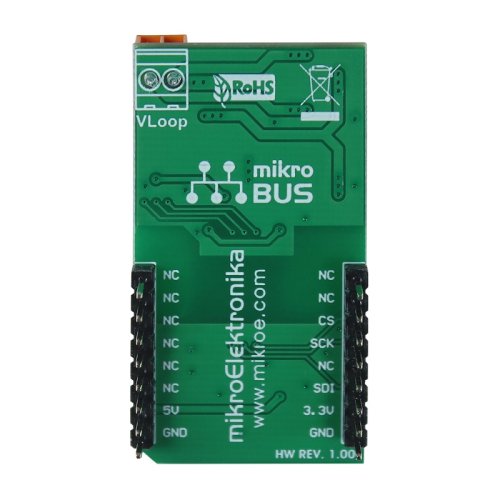

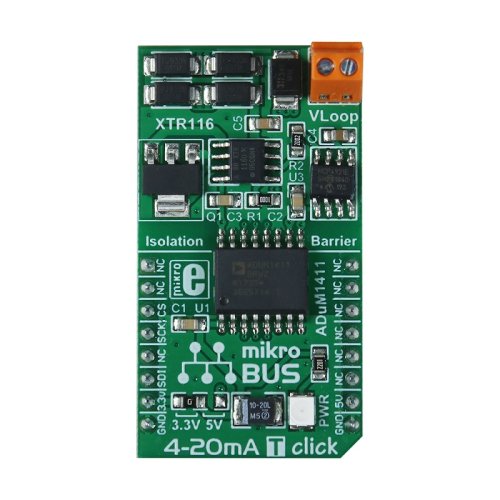

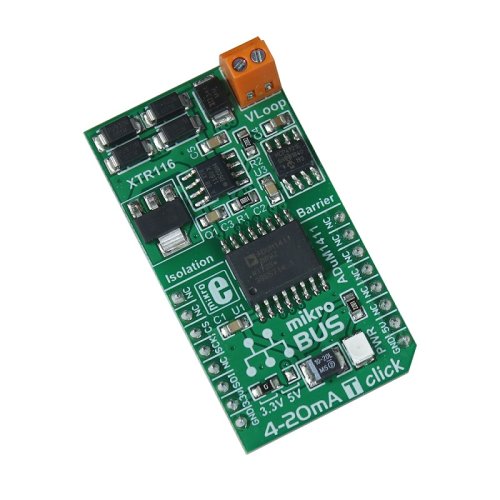

4-20mA T Click is an add-on board in mikroBUS form factor. It’s a compact and easy solution for adding 4-to-20mA industry standard communication protocol to your design. It features ADuM1411 Quad-chanel digital isolator, MCP4921 12-bit DAC as well as XTR116 4-20mA current loop transmitter. 4-20mA T Click™ communicates with target board microcontroller via three mikroBUS™ SPI lines (SDI, SCK, CS). Together with 4-20mA R Click™ this board forms a complete 4-to-20mA current loop standard. The board is designed to use 3.3V and 5V power supply. LED diode indicates the presence of power supply.

Applications:
  • Board is ideal for using in field of industrial process control and test systems. It serves as interface between sensors or instruments connected to MCU
Specifications:
  • On-board modules: ADuM1411 Quad-chanel digital isolator, MCP4921 12-bit DAC as well as XTR116 4-20mA current loop transmitter
  • Key Features: The board receives the input digital signal from the microcontroller and sets the output loop current (4-20mA)
  • Interface: SPI
  • Compatibility: mikroBUS
  • Click board size: M (42.9 x 25.4 mm)
  • Input Voltage: 3.3V or 5V
  • Weight: 34g
Package Includes:
  • 1 x 4-20 mA T Click

Write a review

Please login or register to review

Parallax 64201 4-20 mA T Click

  • Brand: Parallax Inc.
  • Product Code:Plx-64201-4-20mA-T-Click
  • Reward Points:29
  • Availability:In Stock
  • रo 2,916.00

  • Price in reward points:2916

  • 5 or more रo 2,893.00
  • 10 or more रo 2,869.00
  • 25 or more रo 2,846.00
  • 50 or more रo 2,823.00
