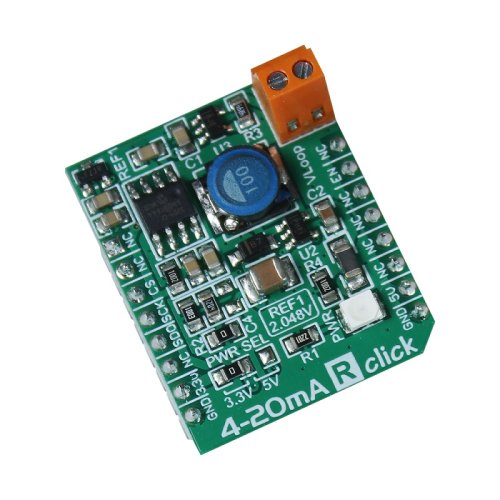

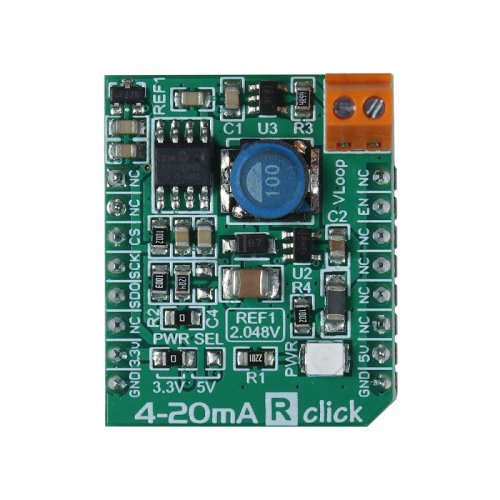

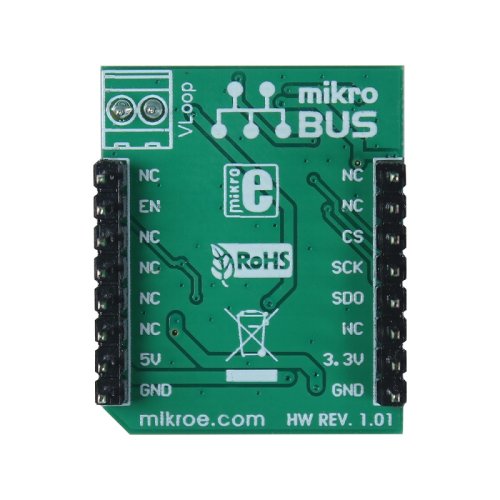

4-20mA R Click is an add-on board in mikroBUS form factor which serves as a receiver in a 4-20mA current loop standard. It features INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter.

It receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V). This voltage is converted into a 12-bit data signal in the MCP3201 A/D converter and sent via mikroBUS™ SPI lines. Together with 4-20mA T Click™ this board forms a complete 4-to-20mA current loop standard. It is designed to use either 3.3V or 5V power supply.

Specifications:
  • Type: Current
  • Applications: Board is ideal for using in field of industrial process control and test systems. It serves as interface between sensors or instruments connected to MCU
  • On-board modules: INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter
  • Key Features: The board receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V)
  • Interface: SPI,GPIO
  • Compatibility: mikroBUS
  • Click board size: S (28.6 x 25.4 mm)
  • Input Voltage: 3.3V or 5V
  • Weight: 30g
Package Includes:
  • 1 x 4-20mA R Click

Write a review

Please login or register to review

Parallax 64200 4-20 mA R Click

  • Brand: Parallax Inc.
  • Product Code:Plx-64200-4-20-mA-R-Click
  • Reward Points:34
  • Availability:In Stock
  • रo 3,437.00

  • Price in reward points:3437

  • 4 or more रo 3,409.00
  • 9 or more रo 3,382.00
  • 22 or more रo 3,354.00
  • 43 or more रo 3,327.00
