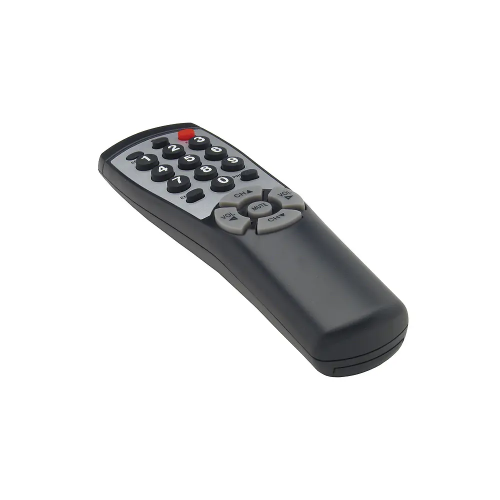

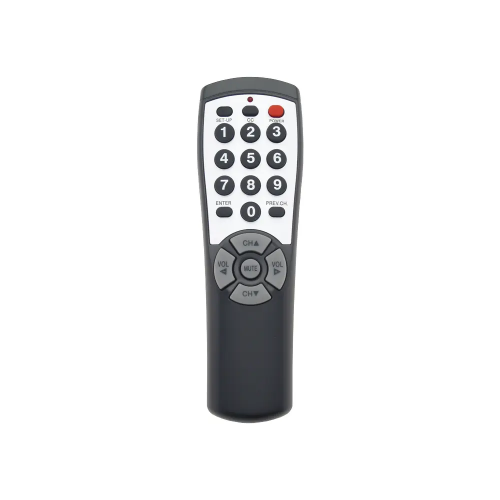

This 3 function infrared universal remote controller is programmable for use with many different brands of televisions and other devices. But, we think it is most fun when used to control your robot!  Signals from this remote are compatible with the IR Receiver included in the Boe-Bot, Shield-Bot, and Activity Bot robot kits.  Your robot’s microcontroller brain can decode the remote’s signals, and then drive or blink lights or make sounds in response. Our IR Remote tutorials and projects show you how.

The remote comes un-programmed; use its enclosed instructions or follow the video above to set it to Sony protocol for use with Parallax projects.

Features:

  • Large number are easy to read and push
  • 5-button direction pad and four additional function keys provide more options for custom applications
  • Manual included to program the remote for compatibility with dozens fo different TV manufacturer’s protocols
  • Example applications or code support for BASIC Stamp, Arduino, Propeller C, and BlocklyProp

Specifications:

  • 10-digit keypad
  • 5-button directional pad
  • 4 additional function keys
  • Power and Setup keys for programming
  • Power Requirements: Two 1.5 V AA batteries (3 VDC), not included
  • Communication: IR Modulated at 38.5 kHz
  • Dimensions: 6.75 x 2 x 1.37 in (171.45 x 50.8 x 34.7 mm)
  • Operating Temperature: -32 to +158 °F (0 to +70 °C)

comparetiable with These Kits:

Documentations:

Package Includes:

  • 1 x Parallax 3 Function Infrared Universal Remote

Write a review

Please login or register to review

Parallax 3 Function Infrared Universal Remote

  • Brand: Parallax Inc.
  • Product Code:NR-Plx-3-Function-Infrared-Universal-Remote
  • Reward Points:15
  • Availability:In Stock
  • रo 1,485.00

  • Price in reward points:1485

  • 10 or more रo 1,400.00
  • 20 or more रo 1,318.00
  • 55 or more रo 1,307.00
  • 110 or more रo 1,295.00
