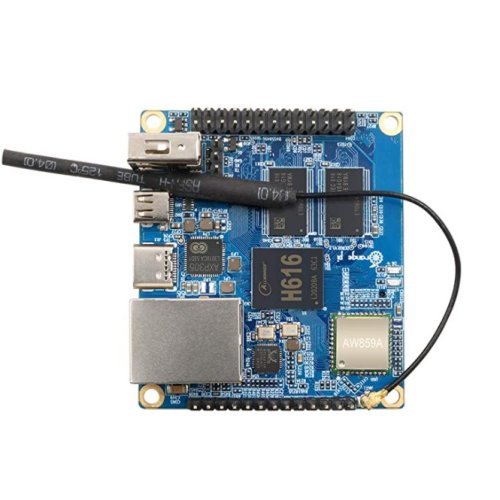

• Orange Pi Zero 2

Orange Pi Zero 2 an open-source single board computer. It can run Android10, Ubuntu, Debian. It uses the AllWinner H616 SoC, and has 512MB/1GB DDR3 SDRAM.

Specifications:

CPU Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor
GPU
Mali G31 MP2
Supports OpenGL ES 1.0/2.0/3.2、OpenCL 2.0
Video decoding
• H.265 [email protected] decoder up to 4K@60fps or 6K@30fps
• VP9 Profile 2 decoder up to 4K@60fps
• AVS2 JiZhun 10bit decoder up to 4K@60fps
• H.264 BP/MP/[email protected] decoder up to 4K@30fps
Video encoding
• H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps
• JPEG snapshot performance of 1080p@60fps
Memory(SDRAM) 512MB/1GB DDR3 (Shared with GPU)
Onboard Storage
• TF card slot
• 2MB SPI Flash
Onboard Network Support 1000M/100M/10M Ethernet
Onboard WIFI+BT
• AW859A Chip
• Support IEEE 802.11 a/b/g/n/ac
• Support BT5.0
Video Outputs
• Micro HDMI 2.0a up to 4K@60fps
• TV CVBS output, Support PAL/NTSC ( Via 13pin interface board)
Audio output
• Micro HDMI
• 3.5mm audio port (Via 13pin interface board)
Power Source Type-C interface 5V2A input
USB 2.0 Ports 3*USB 2.0 HOST(Two of them are via 13pin interface board)
Low-level
peripherals
• 26pin header with I2C, SPI, UART and multiple GPIO ports
• 13pin header with 2*USB Host, IR pin, Tv-out、AUDIO (no MIC) and 3 GPIO ports
Debug serial port UART-TX、UART-RX and GND
LED Power led & Status led
IR receiver Support IR remote control (via 13pin interface board)
Supported OS Android10、Ubuntu、Debian
Dimension  53mm×60mm
Weight  30g



Package Includes:

  • 1 x Orange Pi Zero 2

Write a review

Please login or register to review

Orange Pi Zero 2

  • Brand: Orange Pi
  • Product Code:OPi-Orange-Pi-Zero-2
  • Reward Points:21
  • Availability:Order now and get it in 20 days
  • रo 2,115.00

  • Price in reward points:2115
