• RN131 Evaluation Kit

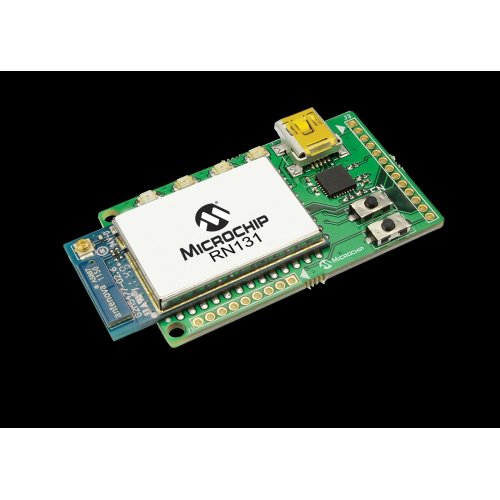

The RN-131-EK is an 802.11 b/g Wi-Fi evaluation kit for the RN131 module that can be used to quickly add Wi-Fi connectivity to embedded applications. It has the flexibility to connect directly to a PC via a standard USB interface or to embedded processors through the TTL/UART interface. The board also includes 2 convenient push buttons for controlling both SoftAP and WPS (Wi-Fi Protected Setup) mode without software configuration. The status LEDs and jumpers enable rapid prototyping and integration into existing systems.

Features:
  • Ultra-low power: 4 µA sleep, 40 mA Rx, 210 mA Tx
  • Complete on-board TCP/IP networking stack
  • Fixed transmit power: +18 dBm
  • UART hardware interface
  • High throughput, 1 Mbps sustained data rate with TCP/IP and WPA2
  • Push buttons for AP/WPS mode and reset signals
  • Supports both Adhoc and SoftAP mode (including SoftAP for Android)
  • 10 general-purpose digital I/O pins
  • 8 analog sensor interfaces
  • Real-time clock for wakeup and time stamping
  • Wi-Fi Alliance certified for WPA2-PSK
  • FCC/CE/IC certified and RoHS compliant
Documents:
Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x RN131 Evaluation Board
  • 1 x USB cable

Write a review

Please login or register to review

RN131 Evaluation Kit

  • Brand: Microchip Technology
  • Product Code:LP-RN131-Evaluation-Kit
  • Reward Points:98
  • Availability:In Stock
  • रo 9,810.00

  • Price in reward points:9810
