• dsPIC33EP512MU814 - Plug-In Module (PIM)

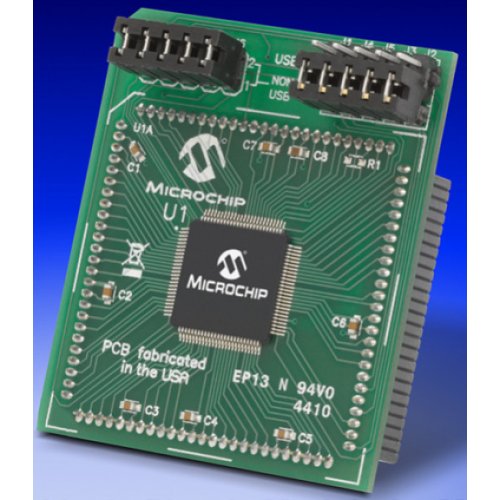

Processor Plug-In Modules are small circuit boards to be used with the various Microchip Development Boards to evaluate various MCU families. These plug into the main processor socket of the Development Boards so that different microcontrollers can be used for prototyping, demonstration or development --quickly and easily.
The dsPIC33EP512MU814 Motor Control PIM is designed to demonstrate the capabilities of the dsPIC33EP512MU814 device using development boards such as the dsPICDEM™ MCLV, MCHV, and MCSM Development Boards, which support 100-pin PIM interfaces.

This PIM can be used to evaluate the following MCUs:
  • dsPIC33EP512MU810
  • dsPIC33EP512MU814
  • dsPIC33EP256MU806
  • dsPIC33EP256MU810
  • dsPIC33EP256MU814
Features:
  • Modified Harvard architecture with 16bit wide data path, 24bit wide instructions
  • Two 40bit accumulators with rounding and saturation options
  • Two master time base modules can control dual 3-phase motors simultaneously
  • Features seven PWM generators, Two PWM outputs per PWM generator and 8.32ns PWM resolution
  • 32bit position counter and 32bit index pulse counter
  • Two independent ADC modules, Flexible and independent ADC trigger sources
  • Nine 16bit timers/counters. Unused output compares can be used for a total of 25 timers
  • 16 input capture, 16 output compare/PWM, Hardware real time clock and calendar
  • 15 channel DMA with user-selectable priority arbitration
  • Quadrature encoder interface
Documents:
Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x dsPIC33EP512MU814 - Plug-In Module (PIM)

Write a review

Please login or register to review

dsPIC33EP512MU814 - Plug-In Module (PIM)

  • Brand: Microchip Technology
  • Product Code:LP-dsPIC33EP512MU814-PIM
  • Reward Points:36
  • Availability:In Stock
  • रo 3,575.00

  • Price in reward points:3575
