Waveshare RP2040-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Optional.

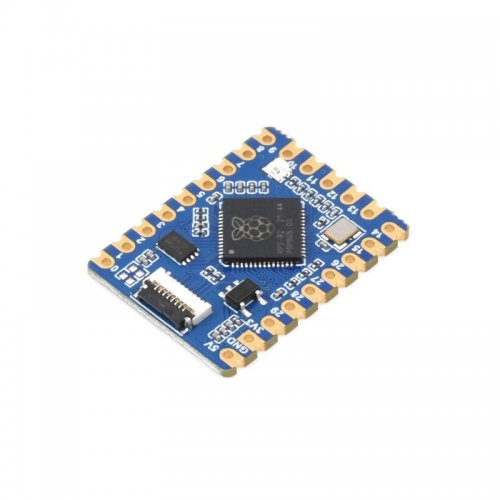

RP2040-Tiny Development Board

  • Based On RP2040, USB Port Adapter Board Optional

Specifications:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 20 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Version Options:

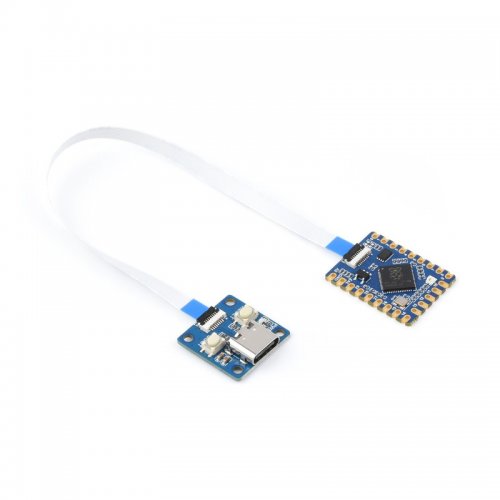

  • RP2040-Tiny-Kit
    • Development board + RP2040-Tiny-Adapter + FPC cable
  • RP2040-Tiny
    • The development board only

Support C/C++, MicroPython, Arduino

  • Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started


Compact Size, Separate Adapter Board Design

  • Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications

Adapting USB Type-C Port Via Adapter Board

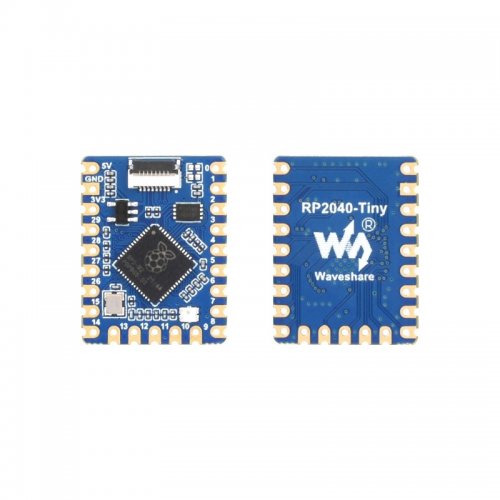

20 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration


* Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.


  • FPC connector
    • 0.5mm pitch 8PIN
  • RT9193-33
    • 500mA low dropout, low noise, ultra-fast LDO
  • W25Q16JVUXIQ
    • 2MB NOR-Flash
  • RP2040
    • dual-core processor, up to 133MHz operating frequency
  • WS2812
    • RGB LED Indicator

Dimention:


Documentations:

Package Includes:

  • Main Board
    • 1 x RP2040-Tiny
  • Kit
    • 1 x RP2040-Tiny
    • 1 x RP2040-Tiny-Adapter
    • 1 x 8PIN FPC cable ~15cm

Write a review

Please login or register to review

Waveshare 24664 / 24665 RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Optional

  • Brand: Waveshare Electronics
  • Product Code:WaveS-RP2040-Tiny-Development-Board
  • Reward Points:5
  • Availability:In Stock
  • रo 460.00
  • रo 386.00

  • Price in reward points:460

  • 10 or more रo 437.00
  • 35 or more रo 434.00
  • 50 or more रo 424.00
  • 70 or more रo 420.00
  • 100 or more रo 416.00
  • 340 or more रo 409.00
