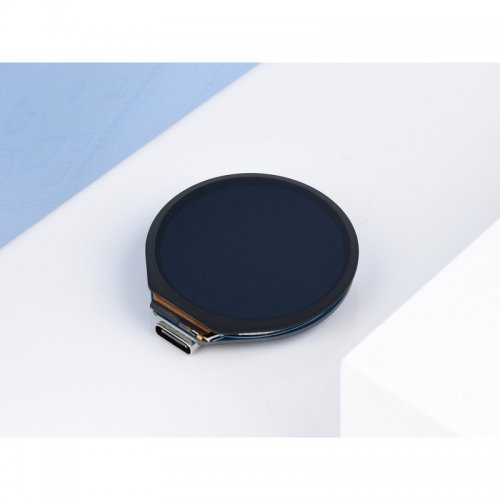

RP2040 Microcontroller Development Board, With 1.28inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor

  • RP2040-Touch-LCD-1.28
  • Based on Raspberry Pi RP2040


Features

RP2040-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 4MB of on-board Flash memory
  • Type-C connector, keeps it up to date, easier to use

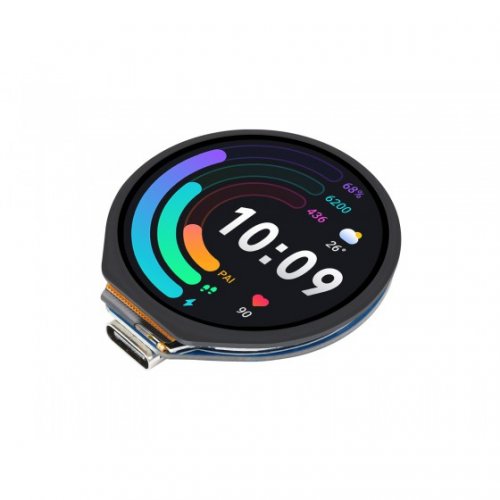

  • Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • Accurate clock and timer on-chip
  • Temperature sensor
  • 6 × GPIO pin via SH1.0 connector

Small Size, Touch More Possibilities

  • Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

Dual-Core Arm Processor

  • Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

Support C/C++, MicroPython, Arduino

  • Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

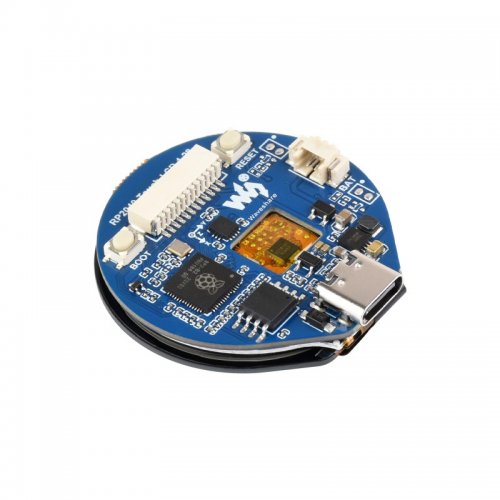

What's On Board

1. USB Type-C connector

  • supports USB1.1 hosts and slave devices

2. ETA6096

  • high-efficiency Lithium battery recharge manager

3. RT9013-33GB

  • 500mA low dropout, low noise, ultra-fast LDO

4. W25Q128JVSIQ

  • 16MB NOR-Flash

5. RP2040

  • dual-core processor, up to 133MHz operating frequency

6. QMI8658

  • 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.

7. BOOT button

  • Press it when resetting to enter download mode

8. RESET button

9. MX1.25 battery header

  • MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

Pin Definition


Documentations:

Package Includes:

  • 1 x RP2040-Touch-LCD-1.28
  • 1 x SH1.0 12PIN cable





Write a review

Please login or register to review

Waveshare 24580 RP2040 Microcontroller Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor

  • Brand: Waveshare Electronics
  • Product Code:NR-WaveS-RP2040-Microcontroller-Development-Board
  • Reward Points:21
  • Availability:In Stock
  • रo 2,055.00
  • रo 1,726.00

  • Price in reward points:2055

  • 7 or more रo 2,040.00
  • 10 or more रo 1,995.00
  • 15 or more रo 1,980.00
  • 35 or more रo 1,965.00
  • 70 or more रo 1,940.00
  • 75 or more रo 1,925.00
