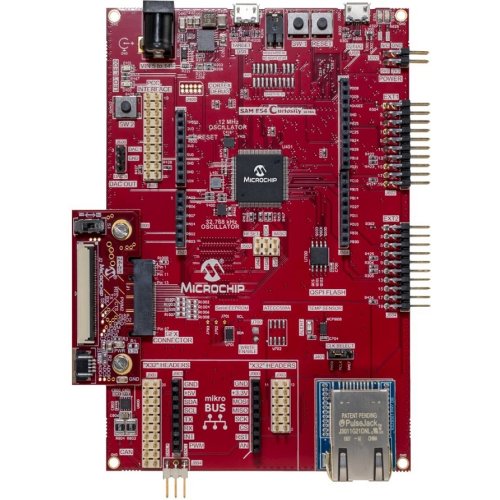

• SAM E54 Curiosity Ultra Development Board
The SAM E54 Curiosity Ultra Development Board includes an integrated programmer and debugger, so no additional hardware is required to get started. Users can expand functionality through MikroElectronika mikroBUS Click adapter boards, add Ethernet connectivity with the Microchip PHY Daughter Board, add Wi-Fi connectivity capability using the Microchip expansions boards, and add audio input and output capability with Microchip audio daughter boards. With or without expansion boards, the SAM E54 Curiosity Ultra Development Board provides the freedom to develop for a variety of applications, including Bluetooth Audio, CAN, Graphics User Interface, Internet of Things (IoT), robotics development, and proof-of-concept designs.

Features:
  • ATSAME54P20A, 120MHz, 1MB flash, 256KB RAM
  • On-Board Debugger (EDBG)
  • Real-time Programming & Debugging
  • Virtual COM port (VCOM)
  • Data Gateway Interface (DGI)
  • One mikroBUS interfaces
  • One X32 Audio interfaces supporting Bluetooth and Audio
  • Ethernet interface
  • Graphics interface
  • Xplained pro extension compatible interface
  • CAN interface
  • User buttons
  • User LEDs
  • 8MB QSPI memory
  • Arduino Uno R3 compatible interface
Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x SAM E54 Curiosity Ultra Development Board

Write a review

Please login or register to review

SAM E54 Curiosity Ultra Development Board

  • Brand: Microchip Technology
  • Product Code:LP-SAM-E54-Curiosity-Board
  • Reward Points:185
  • Availability:Discontinued
  • रo 18,540.00

  • Price in reward points:18540
