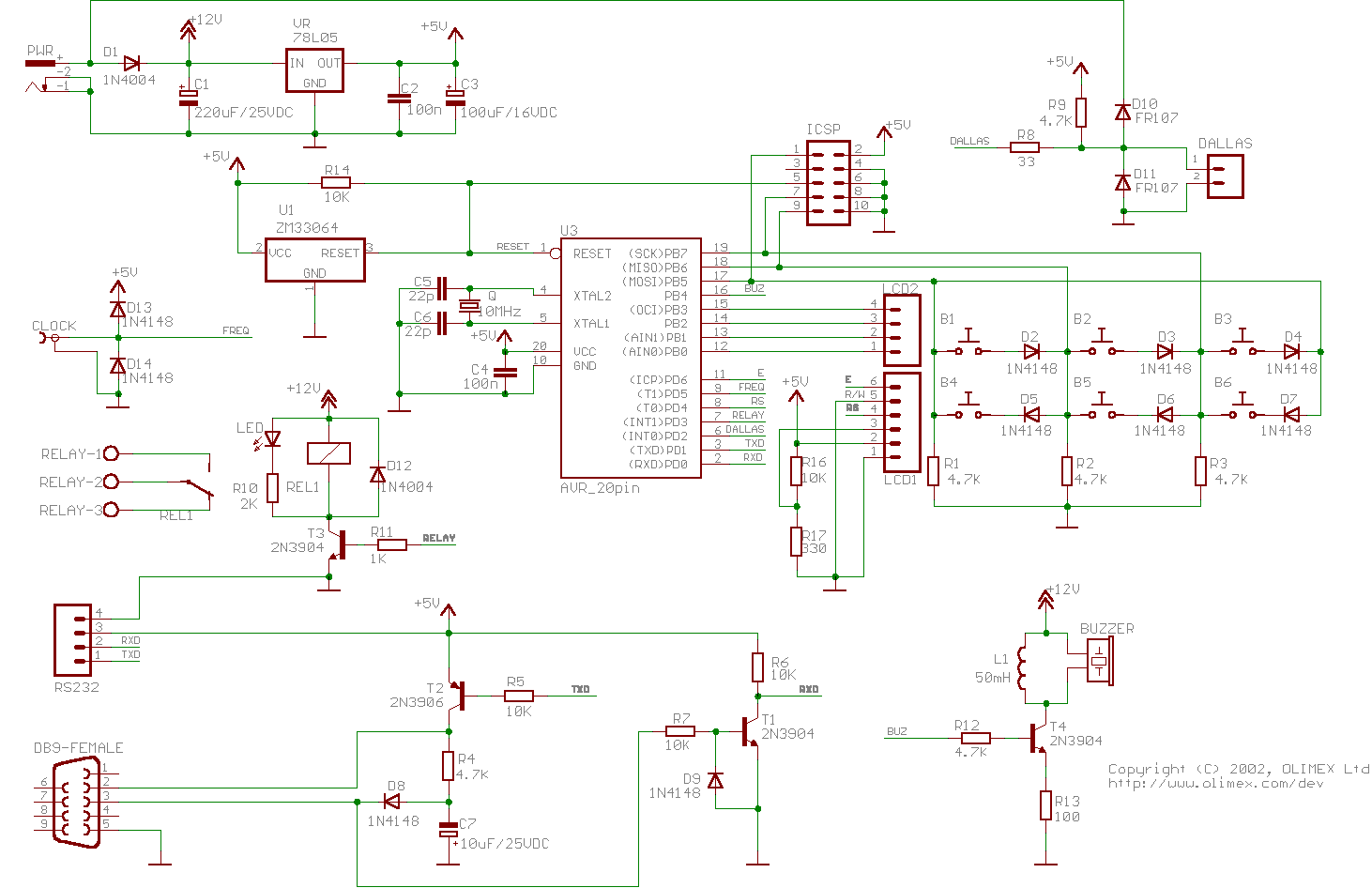

DEVELOPMENT BOARD FOR 20 PIN AVR MICROCONTROLLER WITH STKXXX COMPATIBLE 10 PIN ICSP

Features:
  • ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
  • DIL20 microcontroller socket
  • Dallas touch button port
  • Frequency input
  • RS232 DB9 female connector
  • RS232 interface circuit with Tx, Rx, signals
  • RS232 TTL levels output connector
  • Voltage regulator +5V, 78L05 and filtering capacitors
  • Quartz crystal oscillator circuit 10MHz
  • Reset IC ZM33064
  • Relay with 5A/250VAC contacts with screw terminals
  • Status LED for the relay
  • Buzzer
  • Power plug-in jack
  • FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print
  • Four mounting holes 3.3 mm (0.13")
  • Dimensions 120 x 36 mm (4.7 x 1.4")
Documents

Hardware
Software

Write a review

Please login or register to review

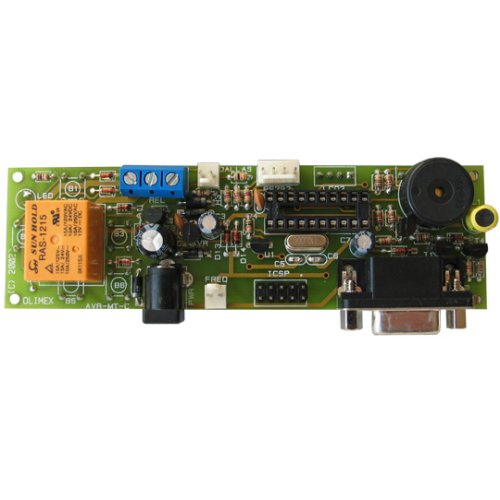

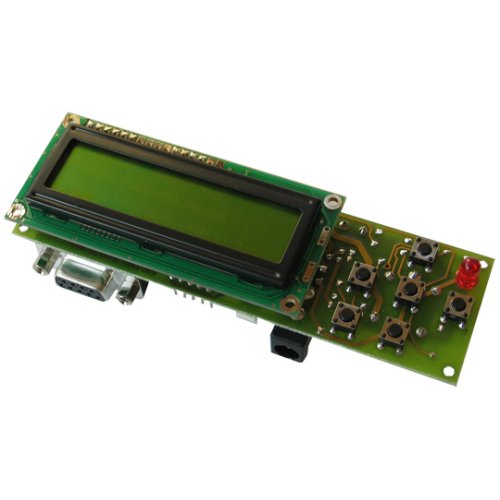

Olimex AVR-MT Development Board

  • Product Code:Olimex-AVR-MT-Board
  • Reward Points:40
  • Availability:In Stock
  • रo 3,985.00
  • रo 1,985.00

  • Price in reward points:3985

Tags: Olimex, AVR-MT, Development, Board, 20 Pin, AVR, Microcontroller
