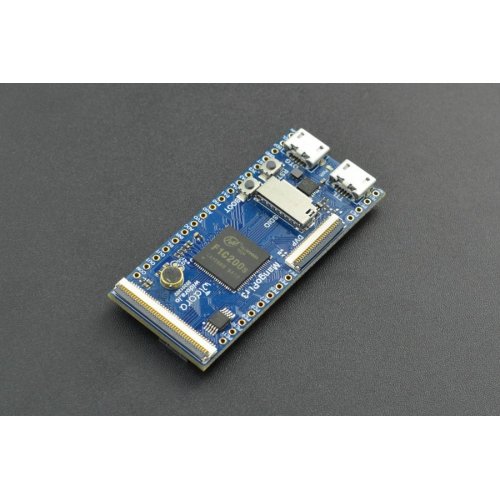

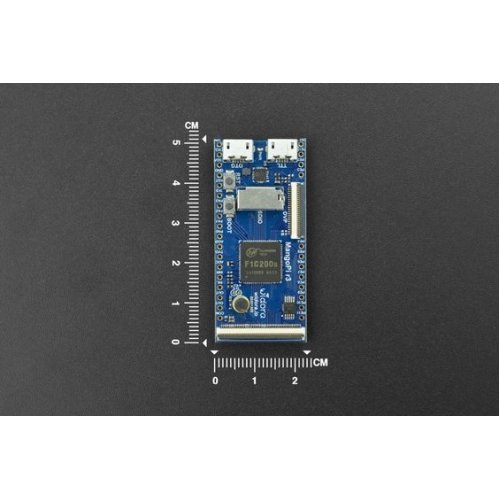

This micro development board is specially designed to run Linux. Despite a mini body, it has all the vital functions. Equipped with F1C200S as the main control chip, the board offers various commonly-used peripheral ports: GPIO, I2C & SPI, SDIO, Audio port (record, play), Video (RGB565 Display, touch, DVP), USB Host, OTG, etc. With built-in 64MB DDR and on-board 128MB Nand Flash, it supports the Linux ecosystem and running complete Python.

Currently, this product is highly open so that users are allowed to compile any module according to their requirements. But it’s mainly for Python developers and senior enthusiasts as it’s a little difficult to get started.

Features:

  • Micro development board for running Linux, supporting the Linux ecosystem
  • Low power consumption
  • Built-in 64 MB DDR and on-board 128MB Nand Flash
  • 420 MHz system clock default frequency, can up to 700 MHz
  • Support running complete Python
  • Rich GPIO pins
  • Onboard Mic and Audio Amplifier
  • RGB565 display interface and 6-wire touch interface
  • DVP camera interface in support of cameras such as OV2640, GC0328, etc.
  • Support SDIO WiFi + BT module

Applications:

  • Mainly for Python developers and Internet engineers, easy to drive hardware through Python.

Documents:

Warranty90 days

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

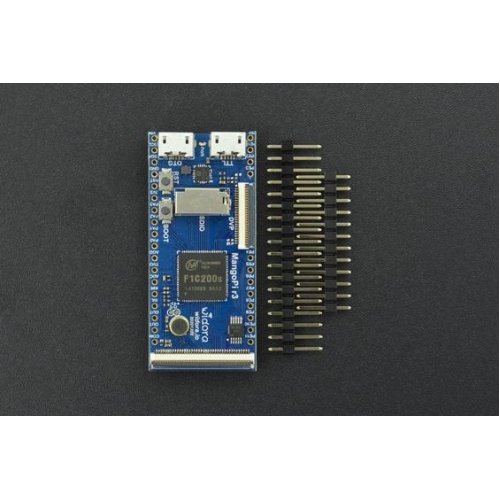

  • 1 x MongoPi-R3 Development Board
  • 1 x Accessories Package

Write a review

Please login or register to review

MongoPi-R3 Development Board

  • Brand: DFRobot
  • Product Code:DFR-MongoPi
  • Reward Points:27
  • Availability:In Stock
  • रo 2,617.00
  • रo 2,271.00

  • Price in reward points:2704

  • 5 or more रo 2,607.00
  • 10 or more रo 2,596.00
  • 25 or more रo 2,527.00
