Waveshare RP2350-GEEK Development Board, Based On RP2350 Microcontroller, With 1.14inch 65K Color LCD, USB Debugging Downloader, With White Plastic Case

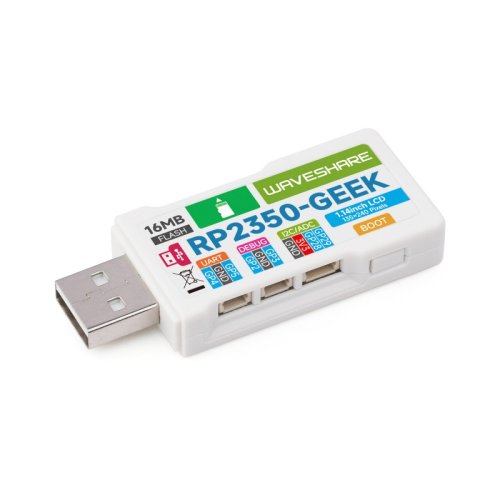

• RP2350-GEEK Development Board, front view RP2350-GEEK Development Board, features

Board specifications:

• RP2350-GEEK is a geeks development board designed by Waveshare, onboard USB Type-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port.

Key features include:

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Onboard 3PIN SWD port for connecting the debugged target board
• Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers
• Works with OpenOCD and other tools supporting CMSIS-DAP
• Adopts the Raspberry Pi 3PIN Debug Connector Specification
• Onboard 3PIN USB to UART bridge
• Onboard 4PIN I2C port for the testing target board
• Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
• Equipped with plastic case and cables
• Open-source firmware, more convenient to upgrade

Combines multiple functions in one

• Onboard multiple interfaces and 1.14inch LCD display, compatible with multiple
• debugging methods
• RP2350-GEEK Development Board, combines multiple functions

Application Example:

• Connect to the debugging interface of Pico via the 3PIN SWD cable

RP2350-GEEK Development Board, application example

•  for reference only, the Raspberry Pi Pico 2 is NOT included.

Onboard Resources

• RP2350-GEEK Development Board, onboard resources

1. USB Type-A interface
2. UART port
3. SWD port
4. I2C port
5.  TF card slot
1. Supports SDIO interface and SPI interface communication
6. W25Q128JVSIQ
1. 16MB NOR-Flash
7. RP2350
8. BOOT button

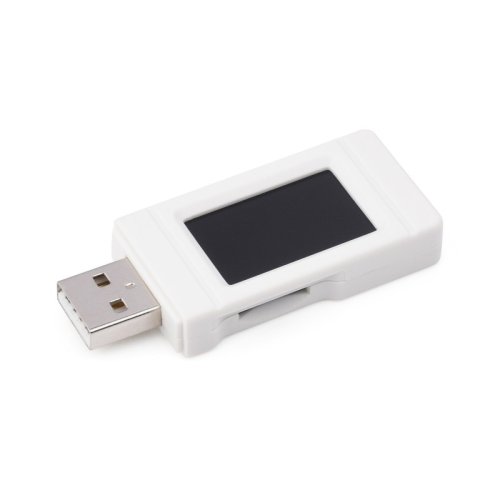

Product show:

outline dimensions:

Package Includes:

• 1 x RP2350-GEEK and cables
