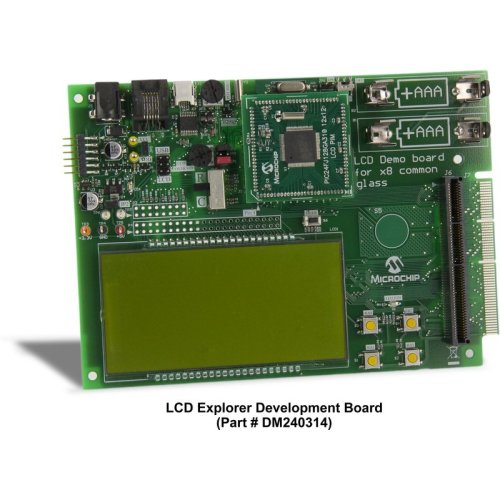

• LCD Explorer XLP Development Board
The LCD Explorer Development Board supports Microchip’s 100-pin Microcontrollers with x8 common Segment LCD Drivers. The LCD Explorer provides an ideal platform for a customer to evaluate a MCU with a x8 Common LCD Driver on a 38 segment x 8 common LCD display. PICtail Plus connections allow a customer to evaluate the selected MCU in a complex system by adding Microchip’s PICtail Plus daughter boards.

Features:
  • Supports all 100-pin LCD Processor Plug-In Modules (PIM)
    • Includes 100-pin PIC24FJ128GA310 LCD PIM
  • 96 Segment 37 Segment x 8 Common LCD Glass
  • Support 1/3 Biasing with:
    • External resistor ladder
    • Internal resistor ladder
    • Charge pump biasing with capacitor
  • 4 Buttons and 1 mTouch Capacitive Button
  • Analog potentiometer and temperature sensor
  • Power input from 9V power supply, battery or USB power source
  • Separate Vbat battery supply
  • Single UART communication channel via USB bridge
  • RJ11 and 6 pin PICkit 3 programming and debug connectors
  • PICtail Plus Vertical and Horizontal connections
    • All Pins populated with many used for other functions on board
    • Upper slot is open for use by end user
Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x LCD Explorer XLP Development Board

Write a review

Please login or register to review

LCD Explorer XLP Development Board

  • Brand: Microchip Technology
  • Product Code:LP-LCD-Explorer-XLP-Board
  • Reward Points:125
  • Availability:Out Of Stock
  • रo 12,595.00

  • Price in reward points:12595

Tags: LCD, Explorer, Development, Board

The product is currently Out-of-Stock. Enter your email address below and we will notify you as soon as the product is available.
