• Automotive Networking Development Board

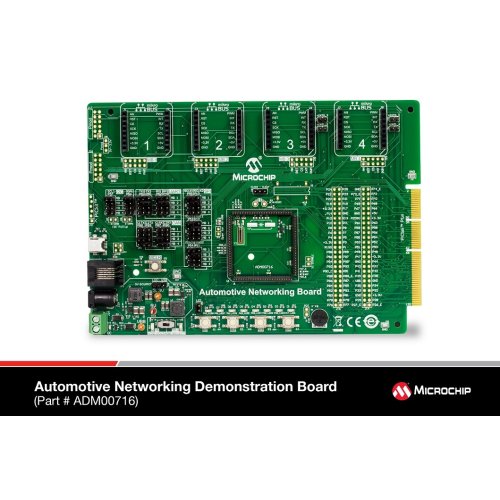

The Automotive Networking Development Board is a low-cost modular development system for Microchip’s 8-bit, 16-bit, and 32-bit microcontrollers targeting CAN and LIN network related applications. The board supports devices using the 100 pin Plug-In Module (PIM) connector for easy device swapping. The board has four Mikrobus sockets which allow the user the ability to develop with a variety of MikroElectronika Click add-on boards. The board also includes a PICtail Plus edge connector for backwards compatibility to PICtail Plus boards used with the Explorer 16 Development board.

Power supply and PIMs (Plug-in Modules) are not included. Recommended add-ons below
  • 2V power Supply or 9V power supply
  • MCP2003B click LIN Transceiver
  • MCP25625 click CAN Controller with integrated Transceiver
  • Microchip PIM (Plug-in Module) boards.
Features:
  • 100-pin PIM header, supports 8bit, 16bit, and 32bit compatible 100 pin PIMs
  • Breakout area on the board that brings out the PIM pins to allow a variety of configurations for development or debugging.
  • A power switch that allows either 3.3v or 5v supply for the MCU on the PIM.
  • Four Mikrobus sockets to support hundreds of MikroElectronika Click add-on boards to allow a variety of CAN, CAN-FD, or LIN network configurations.
  • Multiple input clock options
  • Edge connector for PICtail Plus card compatibility
  • Standard 6-wire In-Circuit Debugger (ICD) connector for MPLAB ICD programmer/debugger module
  • Allows direct 7-30V input DC power to provide regulated +3.3V and +5V output to the entire board
  • User interface options include analog potentiometer and physical switches
Note: that this Board DOES NOT come with any PIMs or Power Supply. The user will need to purchase these separately as needed.

Warranty:
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x Automotive Networking Development Board
