Features:

• Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
• CAN baud rate is configurable in the range of 5Kbps-1Mbps
• Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
• Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
• Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
• Data can be saved as TXT or Excel
• Supports CAN bus detection for status checking
• Sending/receiving CAN data with time scale, allows sequentially displaying
• Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
• Supports setting working parameters by configuration software or serial command, can be saved after power off
• Adopts STM32 chip solution, stable and reliable communication
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
• Comes with master computer software for Windows system, easy to use
• Easy secondary development, just need to modify the sending and receiving commands

Primary Functions:

• Collects Data From CAN Bus To PC Via USB For Transceiver Control,
• Data Analysis
• Acquisition
• Monitoring Of CAN Bus Network

CAN Baud Rate Configurable

• CAN Baud Rate Is Configurable In The Range Of 5Kbps-1Mbps

Support Windows And Linux System

• Support Windows XP/7/8/10/11 And Linux Systems Such As Raspberry Pi OS And Ubuntu Under Jetson Nano, Support Secondary Development

Support Multiple Working Modes

Adopts STM32 Chip Solution

• Adopts The Original STM32F103 Chip, Stable And Reliable Communication

Interfaces Introduction

Outline Dimensions:

Documentation:

• WIKI

Package Includes:

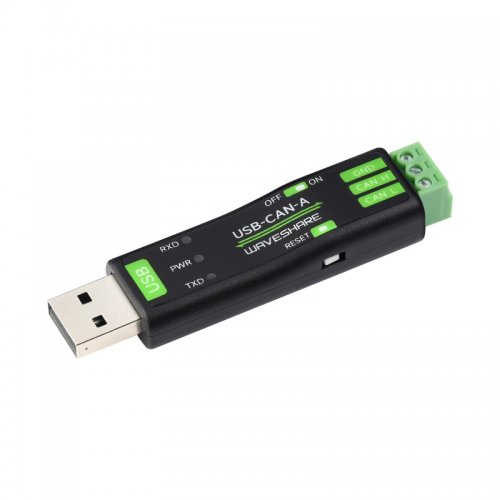

• 1 x USB to CAN Adapter Model A, STM32 Chip Solution, Multiple Working modes, Multi-system Compatible
