Note: Please update firmware if your current one doesn't support this BeagleBone Green HDMI Cape.

Download firmware

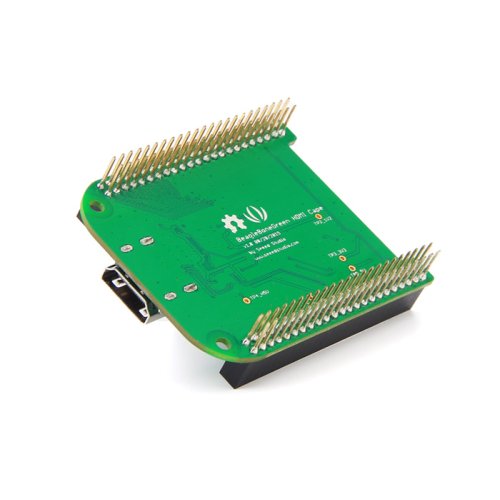

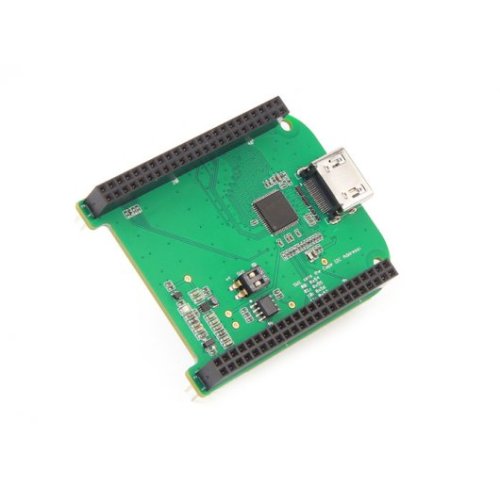

BeagleBone Green HDMI Cape is a general integrated HDMI connector for expanding your BeagleBone to a rich variety of peripherals such as computer monitor, video projector, digital television, or digital audio device. This board features a standard HDMI receptacle that can be connected to a monitor with a standard HDMI-to-HDMI cable. All HD signals are supported, and the output resolution is 1280×720. It also can be used to transmit audio information. This product will make your applications based on BeagleBone board more versatile for different occasions.

Features and Specifications:

  • Plug and play.
  • Adapter to different input signal.
  • 720P(1280×720) output resolution.
  • Input voltage: 5V/3.3V
  • Maxium operating current: 80 mA
  • HDMI version: Version 1.2
  • Maxium Output resolution: 1280x720 @60Hz
  • Audio transmission: Available
  • Chip: IT66121 HDMI Framer

Documents

Write a review

Please login or register to review

BeagleBone Green HDMI Cape

  • Brand: Seeed Studio
  • Product Code:Seeed-BBG-HDMI-Cape
  • Reward Points:12
  • Availability:In Stock
  • रo 1,200.00

  • Price in reward points:1200
