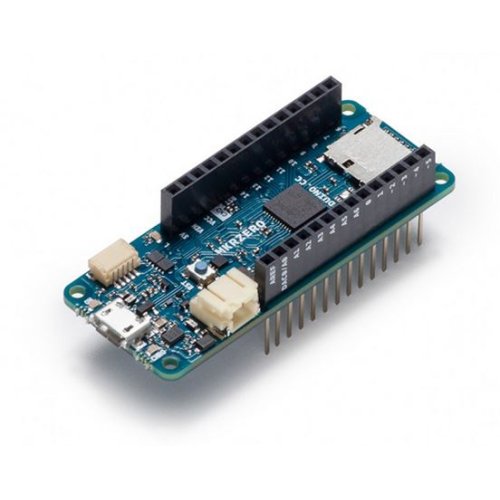

The MKR ZERO brings you the power of a Zero in the smaller format established by the MKR form factor. The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an on-board SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware
- Microcontroller SAMD21 Cortex-M0+ 32bit low power ARM MCU
- Board Power Supply (USB/VIN) 5V
- Supported Battery(*) Li-Po single cell, 3.7V, 700mAh minimum
- DC Current for 3.3V Pin 600mA
- DC Current for 5V Pin 600mA
- Circuit Operating Voltage 3.3V
- Digital I/O Pins 22
- PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
- UART 1
- SPI 1
- I2C 1
- Analog Input Pins 7 (ADC 8/10/12 bit)
- Analog Output Pins 1 (DAC 10 bit)
- External Interrupts 9 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
- DC Current per I/O Pin 7 mA
- Flash Memory 256 KB
- Flash Memory for Bootloader 8 KB
- SRAM 32 KB
- EEPROM no
- Clock Speed 32.768 kHz (RTC), 48 MHz
- LED_BUILTIN 32
- Full-Speed USB Device and embedded Host
- 1 x Arduino MKR ZERO
Arduino MKR ZERO
- Brand: Arduino
- Product Code:Ard-MKR-ZERO
- Reward Points:33
- Availability:Order now and get it in 07 days
-
रo 3,333.00
- Price in reward points:3333
-
- 50 or more रo 2,159.00
