The Arduino UNO WiFi Rev.2 is the easiest point of entry to basic IoT with the standard form factor of the UNO family. Arduino UNO WiFi Rev.2 is your one-stop-solution for many of the basic IoT application scenarios. Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi / Bluetooth and some other enhancements. It incorporates the brand new ATmega4809 8-bit microcontroller from Microchip and has an onboard IMU (Inertial Measurement Unit) LSM6DS3TR.

Specifications:
  • Microcontroller ATmega4809
  • Operating Voltage 5V
  • Input Voltage (recommended) 7 - 12V
  • Digital I/O Pins 14 — 5 Provide PWM Output
  • PWM Digital I/O Pins 5
  • Analog Input Pins 6
  • DC Current per I/O Pin 20 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 48 KB (ATmega4809)
  • SRAM 6,144 Bytes (ATmega4809)
  • EEPROM 256 Bytes (ATmega4809)
  • Clock Speed 16 MHz
  • Radio module u-blox NINA-W102
  • Secure Element ATECC608A
  • Inertial Measurement Unit LSM6DS3TR
  • LED_BUILTIN 25
  • Length 68.6 mm
  • Width 53.4 mm
  • Weight 25 g

Documents:

Package Includes:

  • 1 x Arduino UNO WiFi Rev2

Write a review

Please login or register to review

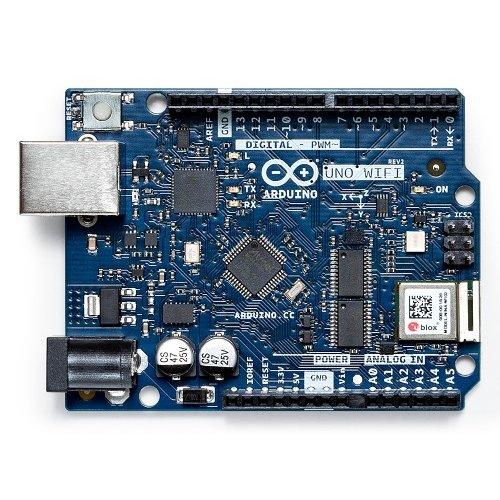

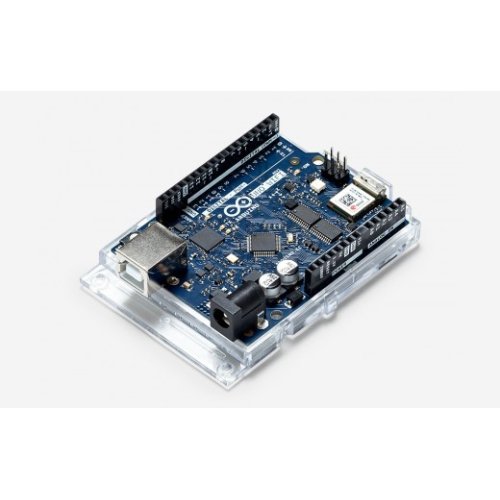

Arduino UNO WiFi Rev2 IoT Board

  • Brand: Arduino
  • Product Code:Ard-UNO-WiFi-Rev2
  • Reward Points:59
  • Availability:Order now and get it in 15 days
  • रo 5,925.00

  • Price in reward points:5925

  • 20 or more रo 3,988.00
  • 50 or more रo 3,837.00
  • 100 or more रo 3,696.00
