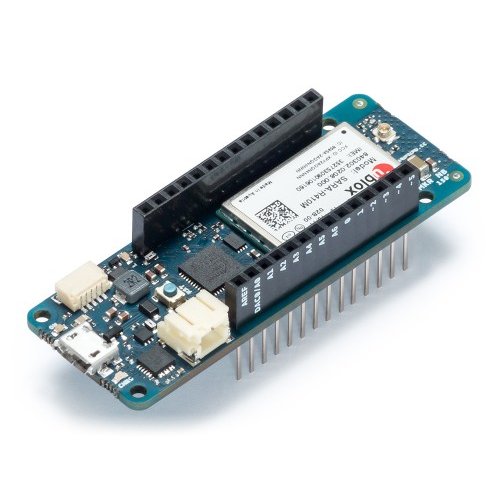

• Arduino MKR NB 1500 IoT Board

Arduino MKR NB 1500 is the perfect choice for devices in remote locations without an Internet connection, or in situations in which power isn't available like on-field deployments, remote metering systems, solar-powered devices, or other extreme scenario.

Specifications:
  • Microcontroller SAMD21 Cortex®-M0+ 32bit low power ARM MCU
  • Radio module u-blox SARA-R410M-02
  • Secure Element ATECC508
  • Board Power Supply (USB/VIN) - 5V
  • Supported Battery - Li-Po Single Cell, 3.7V, 1500mAh Minimum
  • Circuit Operating Voltage - 3.3V
  • Digital I/O Pins - 8
  • PWM Pins - 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
  • UART - 1
  • SPI - 1
  • I2C - 1
  • Analog Input Pins - 7 (ADC 8/10/12 bit)
  • Analog Output Pins - 1 (DAC 10 bit)
  • External Interrupts - 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
  • DC Current per I/O Pin - 7 mA
  • Flash Memory - 256 KB (internal)
  • SRAM - 32 KB
  • EEPROM - no
  • Clock Speed - 32.768 kHz (RTC), 48 MHz
  • LED_BUILTIN - 6
  • Full-Speed USB Device and embedded Host
  • Antenna gain - 2dB (bundled antenna at the Arduino Store)
  • Carrier frequency -  LTE bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28
  • Power class (radio) -  LTE Cat M1 / NB1: Class 3 (23 dBm)
  • Data Rate (LTE M1 Half-Duplex) - UL 375 kbps / DL 300 kbps
  • Data Rate (LTE NB1 Full-Duplex) - UL 62.5 kbps / DL 27.2 kbps
  • Working region - Multiregion
  • Device Location - GNSS via modem
  • Power Consumption (LTE M1) - min 100 mA / max 190 mA
  • Power Consumption (LTE NB1) - min 60 mA / max 140 mA
  • SIM Card - MicroSIM (not included with the board)
  • Length - 67.64 mm
  • Width - 25 mm
  • Weight - 32 gr.

Documents:

Package Includes:

  • 1 x Arduino MKR NB 1500
