Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact [email protected] for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

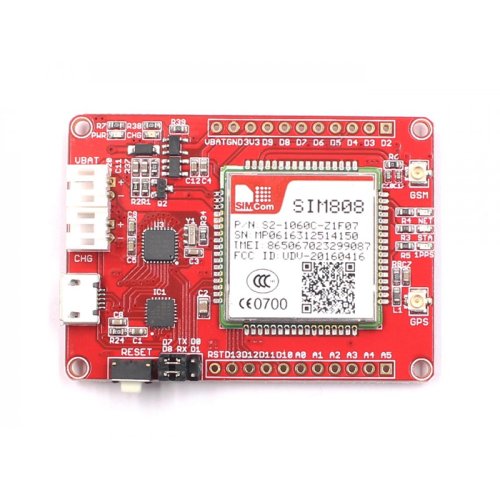

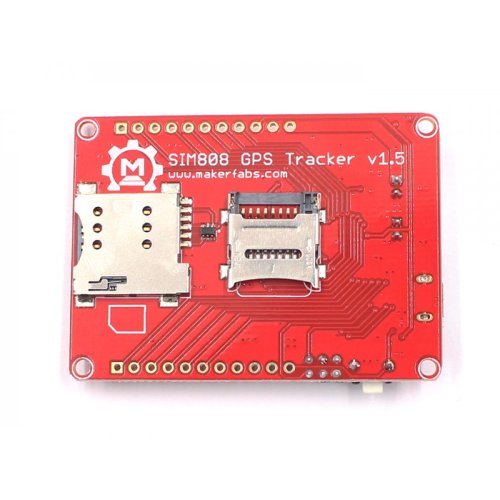

SIM808 GPS Tracker is an IoT (Internet of things) Solution based on the ATmega328 and GPRS/GSM GPS module SIM808. it integrates a micro Controller Atmega 328, GRRS/GSM module SIM808, which is the upgrade version of SIM900, power management, and storage, to make the SIM808 GPS Tracker ready for a real project for IoT projects such as smart-home, outdoor monitoring, shared bicycle, etc.

The Maduino SIM808 GPS Tracker is based on Arduino, users can program it with Arduino IDE, which is very easy especially suit for non-programmers. There are also guide for users to learn how to create the first IoT project with this board, with which the starters can learn the hardware and programming skill quickly.

Features:

  • BAT Input Voltage: 3.4-4.2V
  • ATmega328: 8MHz, 32KB flash, 2KB SRAM
  • Micro SIM connector
  • Integrated Power Control System
  • AT command interface with "auto baud" detection Quad-band: 850/900/1800/1900Mz
  • Send and receive GPRS data (TCP/IP, HTTP, etc.)
  • GPS L1 C/A code
  • 22 tracking /66 acquisition channels
  • Tracking: -165 dBm
  • Cold starts: -148 dBm
  • Time-To-First-Fix: Cold starts-32s (typ.), Hot starts-1s (typ.), Warm starts-5s (typ.)
  • Accuracy: approx. 2.5 meters
  • Interface: I2C/SPI/UART/18*GPIO
  • Arduino compatible
  • Working Temperature: -40 – 85℃
  • Default baud rate: 115200
  • Size: 40mm*55mm

Documents:

Package Includes:

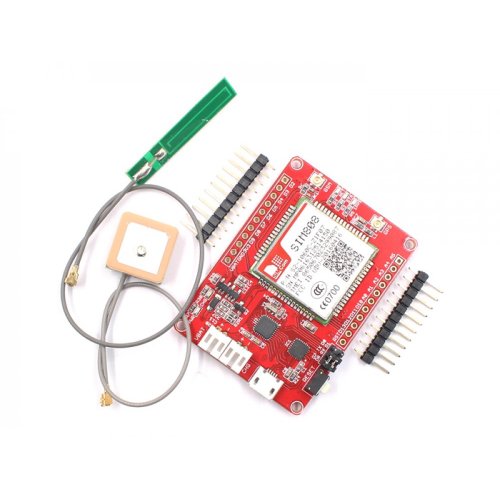

  • 1 x SIM808 GPS Tracker
  • 1 x GPS Antenna
  • 1 x GPRS GSM Antenna


Write a review

Please login or register to review

Makerfabs Maduino SIM808 GPS Tracker

  • Brand: Makerfabs
  • Product Code:MakeF-Maduino-SIM808-GPS-Tracker
  • Reward Points:25
  • Availability:In Stock
  • रo 2,500.00

  • Price in reward points:2500

  • 5 or more रo 2,435.00
  • 12 or more रo 2,416.00
  • 30 or more रo 2,396.00
  • 60 or more रo 2,376.00
