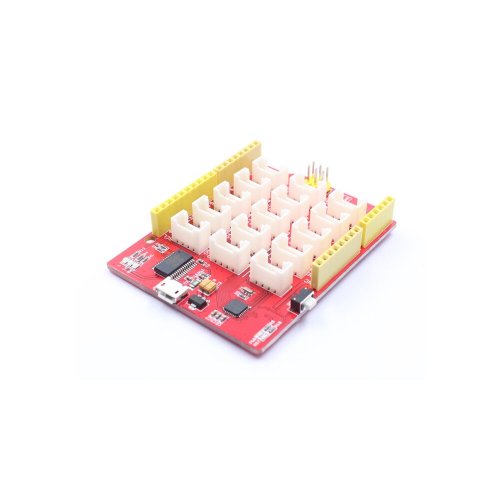

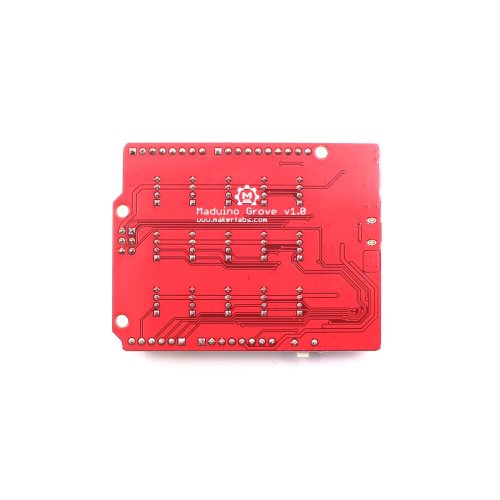

Maduino Grove is an Arduino Microcontroller development board, which is based on ATmega328P-MU and Arduino UNO bootloader. ATMEGA328P-MU is a high-performance, low-power 8-Bit AVR Microcontroller. Maduino Grove used an FT232 as a UART- to- USB converter. You can program the board via a Micro USB cable.

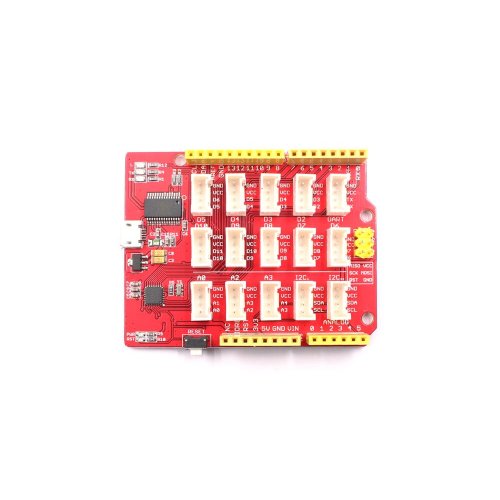

This mainboard breakout 9 digital I/O ports, 3 analog ports, 1 UART port, and 2 IIC ports with Grove interface, it is easy to use with Grove module, just directly plug and you can use them.

Features:

  • ATmega328P-MU microcontroller
  • Arduino UNO bootloader
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • ISP Header
  • Arduino UNO-R3 Shield Compatible
  • Micro USB programming and power supply
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB
  • RAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • Dimension: 68mm x53mm x 11mm

Documentations:

Package Includes:

  • 1 x Maduino Grove

Write a review

Please login or register to review

Makerfabs Maduino Grove

  • Brand: Makerfabs
  • Product Code:NR-MakeF-Maduino-Grove
  • Reward Points:12
  • Availability:In Stock
  • रo 1,265.00

  • Price in reward points:1265

  • 5 or more रo 1,190.00
  • 13 or more रo 1,181.00
  • 25 or more रo 1,171.00
  • 63 or more रo 1,162.00
  • 125 or more रo 1,124.00
