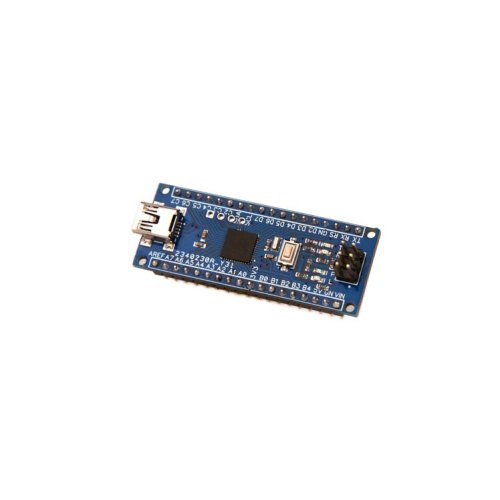

• Narrow - 644 / 1284

644 Narrow and 1284 Narrow are small, simple, ATmega644/1824-based boards designed to improve your small footprint Arduino projects. The Narrow board gives you two to eight times more flash and RAM resources and ten more digital I/O as compared to an Uno/Nano, plus total compatibility.

Specifications:

  644 Narrow 1284 Narrow
Microcontroller ATmega644 ATmega1284
Operating voltage 5 V, with on-board 5 V and 3.3 V regulators 5 V, with on-board 5 V and 3.3 V regulators
Max current USB: 500 mA limited by a PTC. Vin: 800 mA @ 6.2 V, 25°c USB: 500 mA limited by a PTC. Vin: 800 mA @ 6.2 V, 25°c
Flash 64KB 128KB
RAM 4KB 16KB
EEPROM 2KB 24
Digital I/Os 24 24
Analog I/Os 8 8
PWM 6 8
SPI 1 1
USART 2 2
I²C 1 1
USB 1 1
Current consumption 35 mA 35 mA
Size 1097 mm² 1097 mm²
Weight 8g 8g



Package Includes:

  • 1 x 644 / 1284 Narrow
