ANAVI Light Controller is a certified open source hardware WiFi device for controlling a 12 V RGB LED strip. It also supports sensors for light, temperature, humidity, and gesture recognition.

ANAVI Light Controller is fully compliant with the popular open source platform, Home Assistant. That means that when paired with Amazon Alexa, the device can be turned on and off with voice commands.

ANAVI Light Controller combines open source hardware with free and open source software. The printed circuit board was created using the free and open source application, KiCAD. The acrylic case was designed with OpenSCAD. All devices will be manufactured in Plovdiv, Bulgaria.


The open source software running on ANAVI Light Controller is an Arduino sketch written in Arduino IDE using ESP8266 core and other popular Arduino libraries. The device communicates using the lightweight messaging protocol, MQTT. An HTML5, single page application is available for quick testing and demos of ANAVI Light Controller.

ANAVI Light Controller is an entirely open source project. All schematics and source code files are available in our GitHub repositories. Combining open source hardware with free and open source software provides flexibility and independence while at the same time encouraging knowledge sharing and community building. Anyone is welcome to join the community to study, modify, and improve the project.

Getting started with ANAVI Light Controller is easy, no soldering is required. We will provide a comprehensive user’s manual describing the exact steps for using ANAVI Light Controller and flashing your own Arduino sketches through Arduino IDE.


ANAVI Light Controller is fun and easy to use. You don’t need to be a tech whiz to use it. You can assemble it without any tools, and only a screwdriver is needed to connect it to your RGB LED strip. You can use it for:
  • Automating lighting with the open source software platform Home Assistant
  • Controlling lights with voice commands with Amazon Alexa and Home Assistant
  • Making a do-it-yourself magic lamp controlled with gestures
  • Making unique do-it-yourself decorations for the holidays
  • Learning about a project that combines free and open source software with open source hardware
Features & Specifications
  • CPU: Tensilica L106 32-bit processor
  • Connectivity: WiFi 802.11 b/g/n
  • Input voltage: 12 V
  • Peripherals: Terminal block for 12 V RGB LED strip, UART pins, button, three slots for sensors
  • Compatibility: Arduino IDE, Home Assistant, MQTT, and any modern web browser
  • Certification: Open Source Hardware Association (OSHWA) BG000005
  • Dimensions: 75 mm x 40 mm

Sensors

Out of the box ANAVI Light Controller supports the following I2C modules:
  • BH1750 sensor for light
  • HTU21D sensor for temperature and humidity
  • APDS-9960 sensor for RGB color and gesture detection
You can also attach any other I2C sensors, but you will have to take care of their software integration.

Case

All kits include an attractive acrylic case that protects the ANAVI Light Controller from dust while still ensuring good airflow and cooling. In addition, the case prevents accidental presses of the reset button on the board.


ANAVI Light Controller Starter Kit Advanced Kit Developer Kit Family Kit
ANAVI Light Controller Yes Yes Yes Yes Yes (x4)
Case No Yes Yes Yes Yes (x4)
1M 12 V RGB LED strip No Yes Yes Yes Yes (x4)
USB to Serial Debug Cable No Yes Yes Yes Yes (x4)
Light Sensor (BH1750) No No Yes Yes Yes
Temperature and Humidity Sensor (HTU21D) No No No Yes Yes
RGB and Gesture Sensor(APDS-9960) No No No Yes Yes

Images





ANAVI Light Controller Starter Kit Advanced Kit Developer Kit Family Kit
ANAVI Light Controller Yes Yes Yes Yes Yes (x4)
Case No Yes Yes Yes Yes (x4)
1M 12 V RGB LED strip No Yes Yes Yes Yes (x4)
USB to Serial Debug Cable No Yes Yes Yes Yes (x4)
Light Sensor (BH1750) No No Yes Yes Yes
Temperature and Humidity Sensor (HTU21D) No No No Yes Yes
RGB and Gesture Sensor(APDS-9960) No No No Yes Yes

Images

Comparisons

  ANAVI Light Controller ANAVI Light pHAT Standard LED Controller
12 V RGB LED strip Yes Yes Yes
IR Remote Control No No Yes
Stand-alone Yes No Yes
Raspberry Pi Compatibility No Yes No
WiFi Yes Yes No
Sensors Yes (plug and play) Yes (plug and play) No
Home Assistant Integration Yes Yes No
MQTT Yes Yes No
Arduino-compatible Yes No No
Open Source Yes Yes No

All kits include a one meter 12 V RGB LED strip with 30 LEDs (size 5050), IP 20, and power consumption of 7.2W.

You need a 12 V power supply with a standard 2.1x5.5 mm DC jack for your light strip. Select a power supply with sufficient output current and power depending on the length and specifications of your RGB LED strip.

ANAVI Light Controller has been tested using 12 V power supplies from SUNNY Computer Technology Europe such as SYS1530-1212-W2E.

Make sure that you are using a 12 V power supply from a trusted supplier. Cheap, untested power supplies can be risky and unreliable.

We were unable to source power supplies with universal plugs for the US/EU/UK at an acceptable price and, further, power needs will vary based on application. Nowadays, 12 V power supplies with a 2.1x5.5 mm DC jack are a commodity item, so you should be able to easily find a suitable unit online or at your local electronics store.

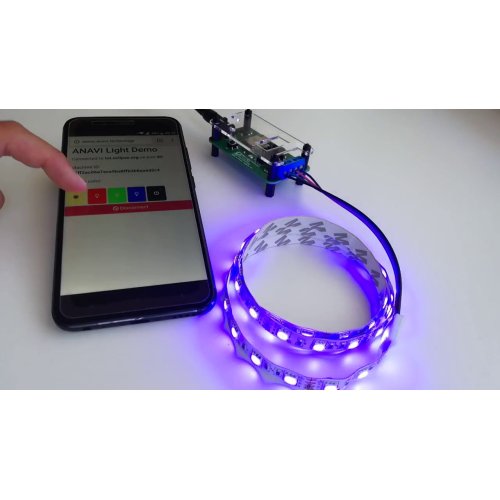

Yes, you can use our demo website or easily integrate ANAVI Light Controller in your instance of the popular open source platform Home Assistant as an MQTT JSON Light component.

Yes, ANAVI Light Controller is an open source hardware project powered and created with free and open source software. The hardware designs are available at GitHub under CC BY-SA 4.0 license. All schematics, documents, and source code files are available at our GitHub repositories.

Yes, ANAVI Light Controller is based on the ESP8266

Yes, using a USB to serial cable, you can flash custom firmware built from your own source code.

Yes, ANAVI Light Controller is compatible with Arduino IDE. You can easily upload your own Arduino sketches to the board.

Package includes for ANAVI Light Controller only :

  • 1 x ANAVI Light Controller

Package includes for Starter Kit :

  • 1 x ANAVI Light Controller
  • 1 x Case
  • 1 x 1M 12 V RGB LED strip
  • 1 x USB to Serial Debug Cable

Package includes for Advanced Kit :

  • 1 x ANAVI Light Controller
  • 1 x Case
  • 1 x 1M 12 V RGB LED strip
  • 1 x USB to Serial Debug Cable
  • 1 x Light Sensor (BH1750)

Package includes for Developer Kit :

  • 1 x ANAVI Light Controller
  • 1 x Case
  • 1 x 1M 12 V RGB LED strip
  • 1 x USB to Serial Debug Cable
  • 1 x Light Sensor (BH1750)
  • 1 x Temperature and Humidity Sensor (HTU21D)
  • 1 x RGB and Gesture Sensor(APDS-9960)

Write a review

Please login or register to review

ANAVI Light Controller

  • Brand: Crowd Supply
  • Product Code:CS-ANAVI-Light-Controller
  • Reward Points:35
  • Availability:In Stock
  • रo 3,485.00

  • Price in reward points:3485

  • 4 or more रo 3,457.00
  • 8 or more रo 3,167.00
  • 20 or more रo 2,986.00
  • 40 or more रo 2,910.00
